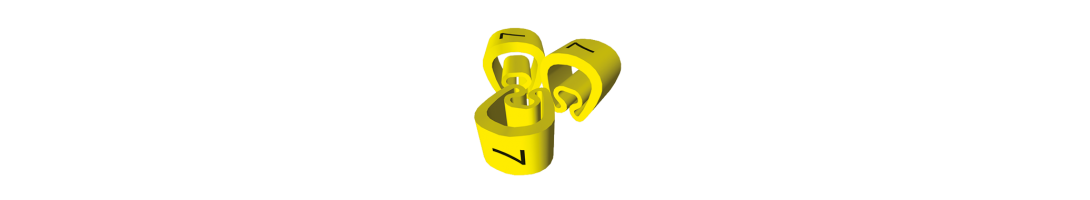

Unex Fixing and Cable ID'S

Unex Fixing and Cable ID'S

Active filters

  • Unex cable tie for outdoor use 2,5x101 in U61X

    For tying of cables and conduits in indoor and outdoor installations. High...
    View Product

    For tying of cables and conduits in indoor and outdoor installations. High tensile strength. Service temperature: +105 Deg C to -40 Deg C. Maximum utilization diameter: 22mm. Minimum utilization diameter: 1,6mm. Load resistance acc. /IEC 62275: 8,16 kg. Designation acc. /MS 3366: MS 3367-4. Own design and manufacture. Own raw material: U61X. Insulating, halogen free material. UL aproval both for raw material and finished product. Easy mounting and smooth fastening. Insulating locking mechanism: highly resistant, assures easy fixing and tightening of the cable tie. Inside teeth to protect the cable's jacket. Maximum reliability and durability. It is recommended to keep the bag closed until use. Colour: black.

  • Unex 6 mm trunking plug in U63X

    To fix trunkings and modular boxes in indoor installations. Easy to mount...
    View Product

    To fix trunkings and modular boxes in indoor installations. Easy to mount and remove. Applicable to the most usual kinds of wall. Drill bit Ø6mm. Colour: Black. Insulating material, halogen free. Electrical safety: The installation is protected against electrical contacts. No need for special tools: Drill bit Ø4mm. Allows corrections: Removable from any kind of wall.

  • Unex 4 mm trunking plug in U63X

    To fix trunkings and modular boxes in indoor installations. Easy to mount...
    View Product

    To fix trunkings and modular boxes in indoor installations. Easy to mount and remove. Applicable to the most usual kinds of wall. Drill bit Ø4,5,5mm. Colour: Black. Insulating material, halogen free. Electrical safety: The installation is protected against electrical contacts. No need for special tools: Drill bit Ø6mm. Allows corrections: Removable from any kind of wall.

  • Unex cable tie for outdoor use 2,5x190 in U61X

    For tying of cables and conduits in indoor and outdoor installations. High...
    View Product

    For tying of cables and conduits in indoor and outdoor installations. High tensile strength. Service temperature: +105 Deg C to -40 Deg C. Maximum utilization diameter: 50mm. Minimum utilization diameter: 1,6mm. Load resistance acc. /IEC 62275: 8,16 kg. Own design and manufacture. Own raw material: U61X. Insulating, halogen free material. UL aproval both for raw material and finished product. Easy mounting and smooth fastening. Insulating locking mechanism: highly resistant, assures easy fixing and tightening of the cable tie. Inside teeth to protect the cable's jacket. Maximum reliability and durability. It is recommended to keep the bag closed until use. Colour: black.

  • Unex cable tie for outdoor use 3,6x142 in U61X

    For tying of cables and conduits in indoor and outdoor installations. High...
    View Product

    For tying of cables and conduits in indoor and outdoor installations. High tensile strength. Service temperature: +105 Deg C to -40 Deg C. Maximum utilization diameter: 32mm. Minimum utilization diameter: 1,6mm. Load resistance acc. /IEC 62275:13,6 kg. Designation acc. /MS 3366: MS 3367-5. Own design and manufacture. Own raw material: U61X. Insulating, halogen free material. UL aproval both for raw material and finished product. Easy mounting and smooth fastening. Insulating locking mechanism: highly resistant, assures easy fixing and tightening of the cable tie. Inside teeth to protect the cable's jacket. Maximum reliability and durability. It is recommended to keep the bag closed until use. Colour: black.

  • Unex cable tie or outdoor use 3,6x199 in U61X

    For tying of cables and conduits in indoor and outdoor installations. High...
    View Product

    For tying of cables and conduits in indoor and outdoor installations. High tensile strength. Service temperature: +105 Deg C to -40 Deg C. Maximum utilization diameter: 50mm. Minimum utilization diameter: 1,6mm. Load resistance acc. /IEC 62275: 8,16 kg. Own design and manufacture. Own raw material: U61X. Insulating, halogen free material. UL aproval both for raw material and finished product. Easy mounting and smooth fastening. Insulating locking mechanism: highly resistant, assures easy fixing and tightening of the cable tie. Inside teeth to protect the cable's jacket. Maximum reliability and durability. Colour: black.

  • Unex cable tie for outdoor use 3,6x279 in U61X

    For tying of cables and conduits in indoor and outdoor installations. High...
    View Product

    For tying of cables and conduits in indoor and outdoor installations. High tensile strength. Service temperature: +105 Deg C to -40 Deg C. Maximum utilization diameter: 76mm. Minimum utilization diameter: 1,6mm. Load resistance acc. /IEC 62275: 13,6kg. Own design and manufacture. Own raw material: U61X. Insulating, halogen free material. UL aproval both for raw material and finished product. Easy mounting and smooth fastening. Insulating locking mechanism: highly resistant, assures easy fixing and tightening of the cable tie. Inside teeth to protect the cable's jacket. Maximum reliability and durability. Colour: black.

  • Unex cable tie for outdoor use 4,8x188 in U61X

    For tying of cables and conduits in indoor and outdoor installations. High...
    View Product

    For tying of cables and conduits in indoor and outdoor installations. High tensile strength. Service temperature: +105 Deg C to -40 Deg C. Maximum utilization diameter: 45mm. Minimum utilization diameter: 1,6mm. Load resistance acc. /IEC 62275: 22,6 kg. Designation acc. /MS 3366: MS 3367-1. Own design and manufacture. Own raw material: U61X. Insulating, halogen free material. UL aproval both for raw material and finished product. Easy mounting and smooth fastening. Insulating locking mechanism: highly resistant, assures easy fixing and tightening of the cable tie. Inside teeth to protect the cable's jacket. Maximum reliability and durability. Colour: black.

  • Unex cable tie for outdoor use 4,8x287 in U61X

    For tying of cables and conduits in indoor and outdoor installations. High...
    View Product

    For tying of cables and conduits in indoor and outdoor installations. High tensile strength. Service temperature: +105 Deg C to -40 Deg C. Maximum utilization diameter: 76mm. Minimum utilization diameter: 1,6mm. Load resistance acc. /IEC 62275: 22,6 kg. Designation acc. /MS 3366: MS 3367-7. Own design and manufacture. Own raw material: U61X. Insulating, halogen free material. UL aproval both for raw material and finished product. Easy mounting and smooth fastening. Insulating locking mechanism: highly resistant, assures easy fixing and tightening of the cable tie. Inside teeth to protect the cable's jacket. Maximum reliability and durability. Colour: black.

  • Unex cable tie for outdoor use 4,8x370 in U61X

    For tying of cables and conduits in indoor and outdoor installations. High...
    View Product

    For tying of cables and conduits in indoor and outdoor installations. High tensile strength. Service temperature: +105 Deg C to -40 Deg C. Maximum utilization diameter: 102mm. Minimum utilization diameter: 1,6mm. Load resistance acc. /IEC 62275: 22,6 kg. Designation acc. /MS 3366: MS 3367-2. Own design and manufacture. Own raw material: U61X. Insulating, halogen free material. UL aproval both for raw material and finished product. Easy mounting and smooth fastening. Insulating locking mechanism: highly resistant, assures easy fixing and tightening of the cable tie. Inside teeth to protect the cable's jacket. Maximum reliability and durability. Colour: black.

  • Unex cable tie for outdoor use 7,6x218 in U61X

    For tying of cables and conduits in indoor and outdoor installations. High...
    View Product

    For tying of cables and conduits in indoor and outdoor installations. High tensile strength. Service temperature: +105 Deg C to -40 Deg C. Maximum utilization diameter: 50mm. Minimum utilization diameter: 4,8mm. Load resistance acc. /IEC 62275: 54,4 kg. Own design and manufacture. Own raw material: U61X. Insulating, halogen free material. UL aproval both for raw material and finished product. Easy mounting and smooth fastening. Insulating locking mechanism: highly resistant, assures easy fixing and tightening of the cable tie. Inside teeth to protect the cable's jacket. Maximum reliability and durability. Colour: black.

  • Unex cable tie for outdoor use 7,6x299 in U61X

    For tying of cables and conduits in indoor and outdoor installations. High...
    View Product

    For tying of cables and conduits in indoor and outdoor installations. High tensile strength. Service temperature: +105 Deg C to -40 Deg C. Maximum utilization diameter: 76mm. Minimum utilization diameter: 4,8mm. Load resistance acc. /IEC 62275: 54,4 kg. Own design and manufacture. Own raw material: U61X. Insulating, halogen free material. UL aproval both for raw material and finished product. Easy mounting and smooth fastening. Insulating locking mechanism: highly resistant, assures easy fixing and tightening of the cable tie. Inside teeth to protect the cable's jacket. Maximum reliability and durability. Colour: black.
