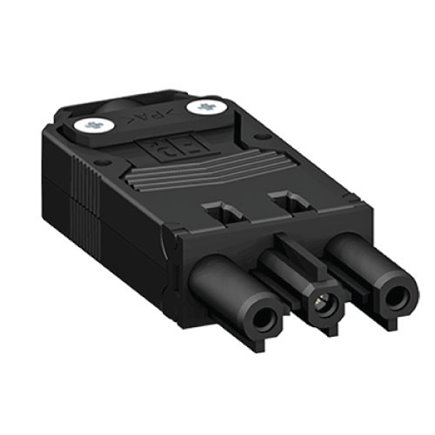

Female 3 Pole Installation Coupler

Female 3 Pole Installation Coupler

Panel-installed 3-pole coupler (female half), 20A rated, screwed terminal. Available in Black, White or Red.

EPN1114
Colour: Black
Quantity



Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The Female 3 Pole Installation Coupler is a panel-installed power connector (female half) from Cableaway's soft wiring system, designed for permanent or semi-permanent installation using screwed terminals. It provides a robust 3-pole connection point for extending or joining soft wiring runs behind desks, partitions and joinery.

TECHNICAL SPECIFICATIONS

Connector Gender Female
Poles 3 Pole
Current Rating 20A
Voltage Rating 250V AC
Termination Screwed terminal
Body Material Polyamide (PA)
IP Rating IP20
Mounting Panel installation

KEY FEATURES

  • Screwed terminal connection for a secure, permanent wiring termination
  • Panel-mounted female half designed to pair with the matching Male Installation Coupler
  • Compact 3-pole design rated to 20A for reliable power distribution
  • Available in Black, White or Red to suit colour-coded wiring systems
  • Durable polyamide housing for long service life

TYPICAL APPLICATIONS

Extending soft wiring runs between desks or workstations
Permanent in-wall or in-desk installation points
Joining power modules across modular furniture
Concealed cable management installations

ORDERING INFORMATION: Select the required colour above. Each combination is supplied with its own reference code. Pairs with the corresponding Male Installation Coupler to complete the connection.

COMPLIANCE & CERTIFICATION

Standard AS/NZS 61535
Certification

Installation should be carried out by a licensed electrician in accordance with local wiring rules.
