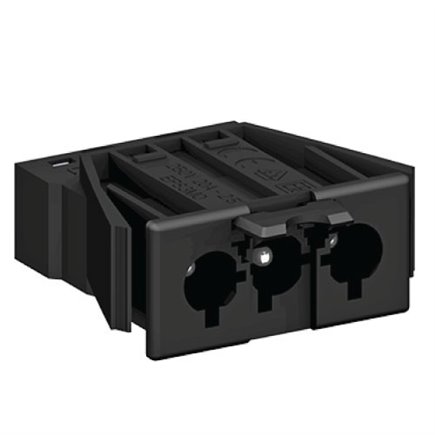

Male Panel Mount Snap Connector

Panel-mounted 3-pole snap-in power connector (male half), 20A rated, push-in terminal. Available in Black, White or Red.

EPNS7105
Colour: White
Quantity



Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The Male Panel Mount Snap Connector is the plug half of Cableaway's 3 Pole Soft Wiring System, a push-in terminal connector rated to 20A that snap-fits into a cut panel for tool-free installation. It mates directly with the matching Female Panel Mount Snap Connector to join softwire runs without an electrician re-terminating cable on site.

TECHNICAL SPECIFICATIONS

Pole Count 3 Pole (2+PE)
Connector Gender Male (plug)
Current / Voltage Rating 20A - 250V AC
Termination Push-in (snap) terminal, no tools required
Wire Cross-Section 0.5-2.5mm2
Colour Options Black / White / Red
Body Material Polyamide, silver-plated brass contacts

KEY FEATURES

  • Push-in (snap) termination - no crimping or screwdriver required
  • Panel mount into a standard cut-out for a clean, flush finish
  • 20A rated for 3-pole (2+PE) mains circuits
  • Colour-coded body (Black, White, Red) for circuit identification
  • Mates directly with matching Female Panel Mount Snap Connector
  • Silver-plated brass contacts for reliable, low-resistance connection

TYPICAL APPLICATIONS

Softwire Power Distribution Systems
Office Fit-Outs & Partition Walls
Modular Workstations & Desk Runs
Ceiling & Under-Floor Power Distribution

ORDERING INFORMATION

Select colour when ordering: Black, White or Red. Pair with the matching Female Panel Mount Snap Connector to complete the connection.

COMPLIANCE & CERTIFICATION

Standards AS/NZS 61535
Certification

Installation should be carried out by a licensed electrician in accordance with local wiring regulations.

EPNS7105
