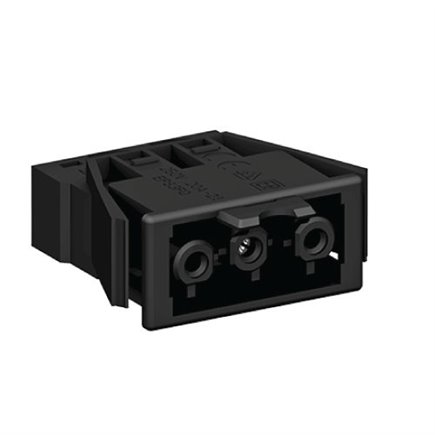

Female Panel Mount Snap Connector

Panel-mounted 3-pole snap-in power connector (female half), 20A rated, push-in terminal. Available in Black, White or Red.

EPNS7114
Colour: Black
Quantity



Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

Female Panel Mount Snap Connector

The Female Panel Mount Snap Connector is a panel-mounted 3-pole snap-in power connector (female half) designed for fast, tool-free assembly of soft wiring systems. Featuring a push-in terminal design, it accepts stripped conductor ends without the need for crimping or screw terminals, making on-site installation and modification fast and reliable.

TECHNICAL SPECIFICATIONS

Connector Gender Female (socket)
Number of Poles 3 Pole
Rated Current 20A
Rated Voltage 250V AC
Termination Push-in terminal
Conductor Size 0.5-2.5mm2
Body Material Polyamide (PA)
IP Rating IP20
Mounting Panel mount, snap-in fixing
Available Colours Black, White, Red

KEY FEATURES

  • Push-in terminal for fast, tool-free wire connection
  • Snap-in panel mounting for quick installation
  • Female socket half mates securely with matching male connector
  • Colour-coded body (Black, White, Red) for circuit identification
  • Compact, panel-mounted design suited to desktop and in-desk power modules
  • Rated to 20A / 250V AC for general power circuits

TYPICAL APPLICATIONS

Desktop power modules In-desk power units
Soft wiring interconnect systems Modular power distribution
Office furniture power reticulation Panel-mounted power outlets

ORDERING INFORMATION: The Female Panel Mount Snap Connector is available in Black, White or Red to suit colour-coded soft wiring installations. Select the required colour option above. Pairs with the corresponding Male Panel Mount Snap Connector to complete the connection.

COMPLIANCE & CERTIFICATION

Standard AS/NZS 61535
Compliance

Ensure connectors are fully seated and locked before energising the circuit. Installation should be carried out by a qualified electrician in accordance with local wiring rules.
