Floor Outlet Box 2 x 10amp Auto Swiched Outlets 3 x Data Provisions 245 Series (Shallow)

Floor Outlet Box 2 x 10amp Auto Swiched Outlets 3 x Data Provisions - Stainless Steel Flush 245 Series (Shallow)

$374.00
Tax included

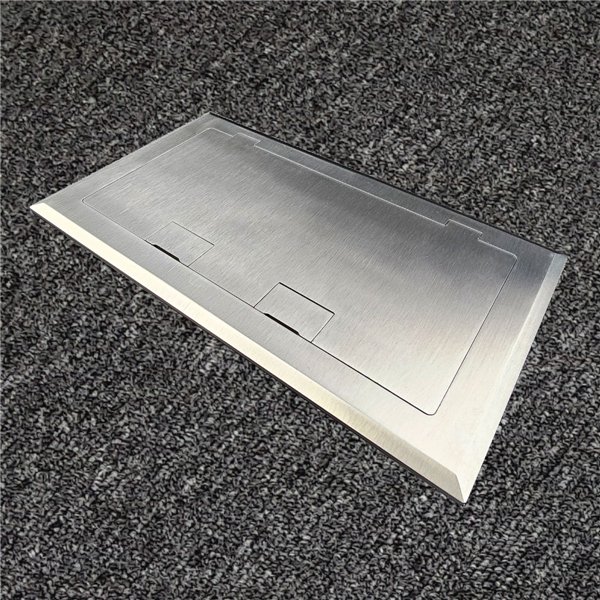

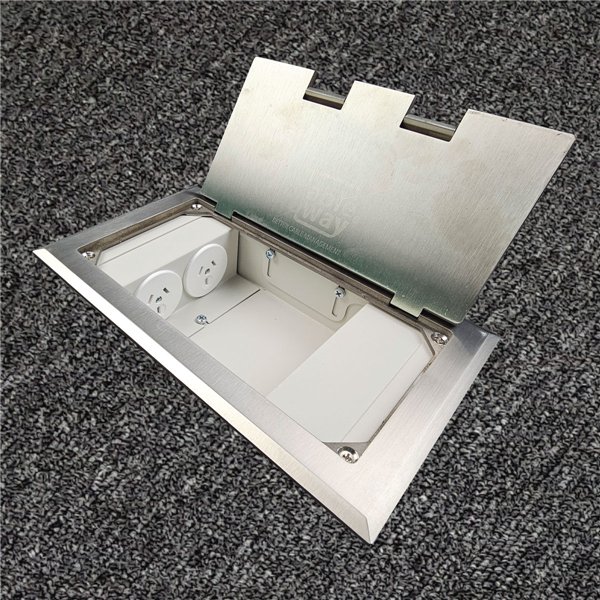

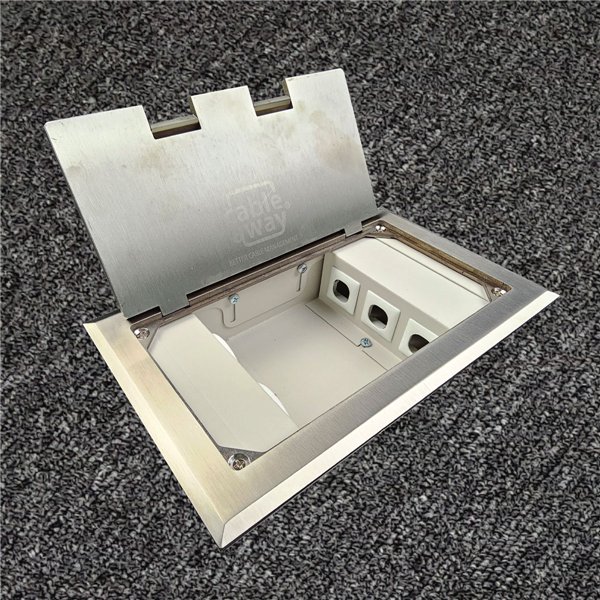

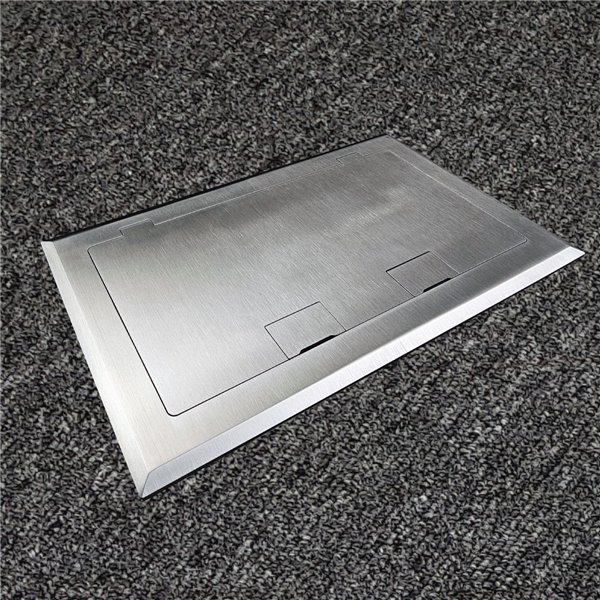

The FB245SSF2P3DS50 floor outlet box comes complete with a height-adjustable stainless steel flush lid and provision for 2x 10-amp auto-switched outlets and 3 data provisions.






FB245SSF2P3DS50
Quantity



Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The FB245SSF2P3DS50 floor outlet box comes complete with a height-adjustable stainless steel flush lid and provision for 2 x 10-amp auto-switched outlets and 3 x data provisions.

TECHNICAL SPECIFICATIONS

Part Number FB245SSF2P3DS50
Lid Type Flush, Square Edge
Lid Finish Stainless Steel
Carcass Type Shallow Depth (52mm)
Outlet Configuration 2 x 10 Amp Auto Switched Outlets + Provision for 3 x Data
Body Material Powder Coated Zinc Anneal Steel
Frame & Lid Material Stainless Steel
Conduit Knockouts 25mm
Weight 4.0 kg (approx.)

DIMENSIONS

LID WIDTH
145 mm
LID LENGTH
245 mm
CARCASS WIDTH
125 mm
CARCASS LENGTH
225 mm
CARCASS DEPTH
52 mm
DEPTH INC. LID
57 mm

KEY FEATURES

  • ● Height-adjustable stainless steel flush lid with a square edge profile
  • ● Shallow 52mm body depth, ideal for limited-depth floor installations
  • ● Powder coated zinc anneal steel body for durability and corrosion resistance
  • ● Frame and lid manufactured from stainless steel
  • ● 25mm knockouts provided for easy conduit entry
  • ● 2 x 10 amp auto switched power outlets
  • ● Provision for 3 x data mechs

TYPICAL APPLICATIONS

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

ORDERING INFORMATION

Part Number FB245SSF2P3DS50
Series 245 Series Floor Outlet Boxes (Square Flush Lid, Shallow, Power & Data)
Warranty Manufacturer's warranty
FB245SSF2P3DS50

Data sheet

FLOOR BOX LID TYPE
FLUSH FINISH LID SECTION
FLOOR BOX LID FINISH TYPE
STAINLESS STEEL FINISH
FLOOR BOX CARCASS TYPE
STANDARD DEPTH CARCASS BOX
POWER OUTLET CAPACITY
1 - STANDARD DGPO OUTLET
