3 Pole Tee 1in to 2 out

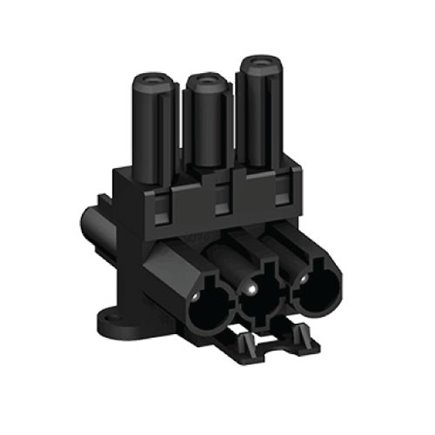

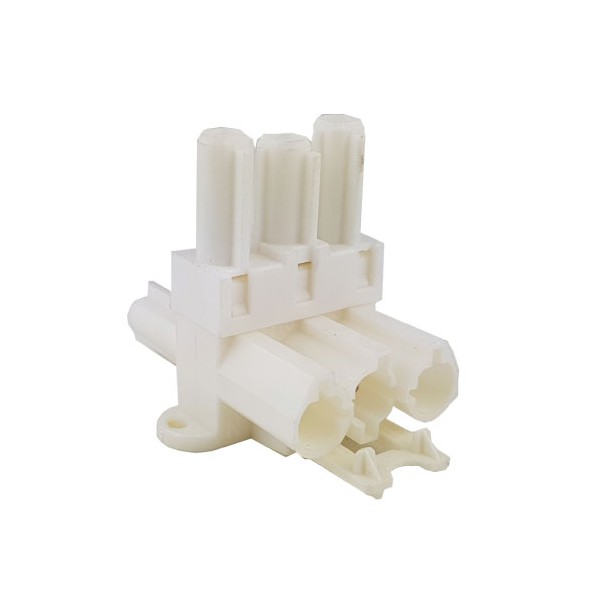

Panel-installed 3-pole Tee distribution block, 1 in to 2 out, 20A rated, screwed terminal. Available in Black or White.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
The 3 Pole Tee is a panel-installed distribution accessory from Cableaway's soft wiring system, allowing a single 3-pole supply to be split into two outgoing 3-pole circuits from one Tee-shaped body. It uses the same screwed-terminal termination as the rest of the soft wiring range, so it installs and pairs directly with the Installation Couplers and Distribution Blocks already on site.
TECHNICAL SPECIFICATIONS
| Configuration | 1 in to 2 out (Tee) |
| Poles | 3 Pole |
| Current Rating | 20A |
| Voltage Rating | 250V AC |
| Termination | Screwed terminal |
| Body Material | Polyamide (PA) |
| IP Rating | IP20 |
| Mounting | Panel installation |
KEY FEATURES
- Tee-shaped body splits one 3-pole input into two 3-pole outputs from a single connection point
- Screwed terminal connections for a secure, re-workable wiring connection
- Compact panel-mounted design suited to modular soft wiring installations
- Durable polyamide body rated to IP20 for indoor use
- Colour-matched to the rest of the soft wiring range for a consistent finish
TYPICAL APPLICATIONS
| Branching a single power feed to two downstream circuits |
| Modular office fit-outs using Cableaway's soft wiring system |
| Panel and enclosure distribution where a compact splitting point is needed |
ORDERING INFORMATION
The 3 Pole Tee is available in Black or White to match the surrounding installation. Select the colour required from the options above; both colours share the same electrical and mechanical specification. Pairs with Cableaway's 3 Pole Installation Couplers and Distribution Blocks to complete a soft wiring run.
COMPLIANCE & CERTIFICATION
| Standard | AS/NZS 61535 |
| Certification |
Installation should only be carried out by a licensed electrician in accordance with applicable wiring rules and standards.
EPNT015
