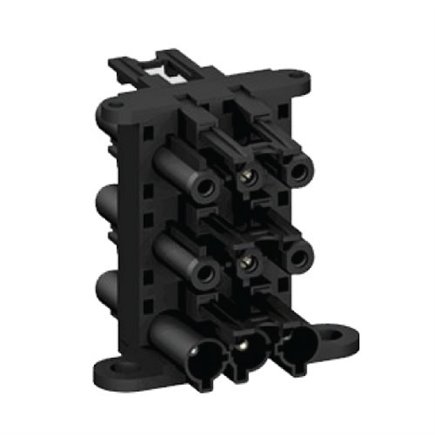

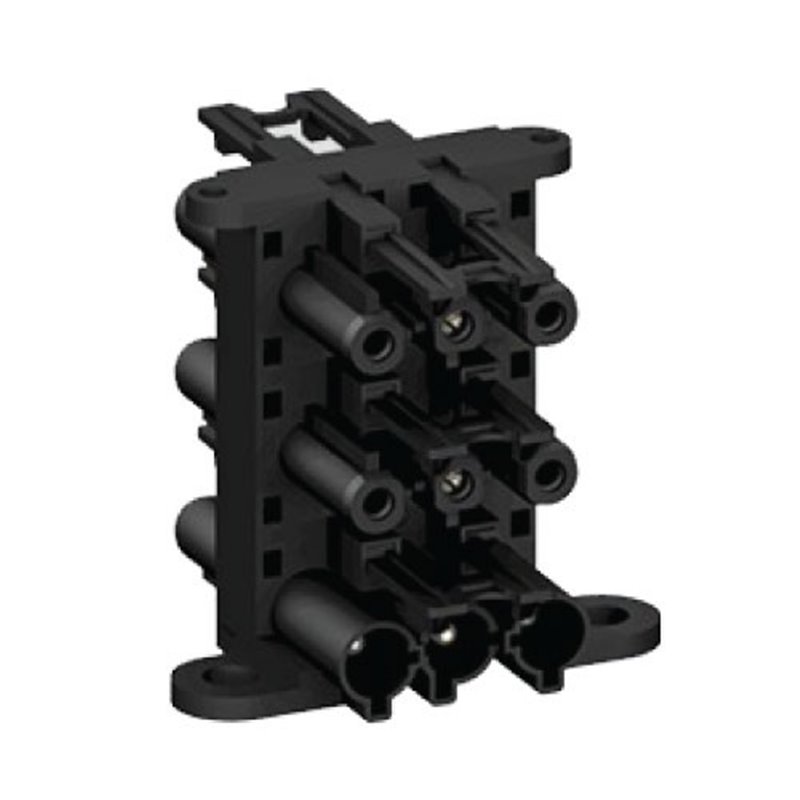

3 Pole Distribution Block 1 in 5 out
Panel-installed 3-pole distribution block, 1 in to 5 out, 20A rated, screwed terminal. Available in Black or White.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
The 3 Pole Distribution Block (1 in to 5 out) is a panel-installed power distribution accessory from Cableaway's soft wiring system, allowing a single 3-pole 20A input to be split into five separate 3-pole outputs from one compact connection point. Designed for high-density power distribution in modular wiring installations, it reduces cabling complexity and installation time in commercial fitouts.
TECHNICAL SPECIFICATIONS
| Configuration | 1 in to 5 out |
| Poles | 3 pole |
| Current Rating | 20A |
| Voltage Rating | 250V AC |
| Termination | Screwed terminal |
| Body Material | Polyamide (PA) |
| IP Rating | IP20 |
| Mounting | Panel installation |
KEY FEATURES
- Splits one 3-pole input into five 3-pole outputs from a single distribution point
- Screwed terminal connections for a secure, reliable wiring connection
- Compact panel-mount design suited to distribution boards and modular enclosures
- Durable polyamide body rated to IP20 for general indoor use
- Available in Black or White to suit installation aesthetics
TYPICAL APPLICATIONS
| Commercial fitouts requiring high-density power distribution |
| Modular soft wiring systems in office and retail environments |
| Distribution boards and panel-mounted power splitting |
| Multi-outlet power runs from a single supply point |
ORDERING INFORMATION
Select Black or White to match your installation. Pairs with Cableaway's 3 Pole Installation Couplers, Tees and Distribution Blocks to complete a soft wiring run.
COMPLIANCE & CERTIFICATION
| Standard | AS/NZS 61535 |
| Certification |
Install in accordance with AS/NZS 3000 wiring rules. Ensure the distribution block is used within its rated current and voltage limits and terminated by a licensed electrician.
EPNE014
