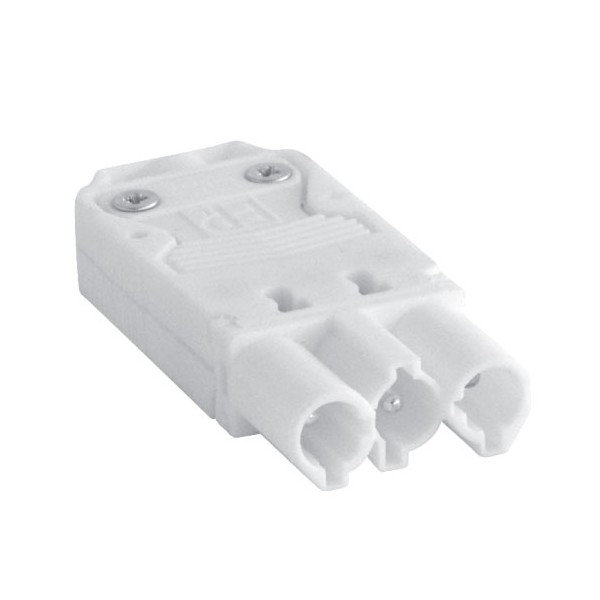

Male 3 Pole Installation Coupler
Panel-installed 3-pole coupler (male half), 20A rated, screwed terminal. Available in Black, White or Red.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
The Male 3 Pole Installation Coupler is a panel-installed power connector (male half) from Cableaway's soft wiring system, designed for permanent or semi-permanent installation using screwed terminals. It provides a robust 3-pole connection point for extending or joining soft wiring runs behind desks, partitions and joinery.
TECHNICAL SPECIFICATIONS
| Connector Gender | Male |
| Poles | 3 Pole |
| Current Rating | 20A |
| Voltage Rating | 250V AC |
| Termination | Screwed terminal |
| Body Material | Polyamide (PA) |
| IP Rating | IP20 |
| Mounting | Panel installation |
KEY FEATURES
- Screwed terminal connection for a secure, permanent wiring termination
- Panel-mounted male half designed to pair with the matching Female Installation Coupler
- Compact 3-pole design rated to 20A for reliable power distribution
- Available in Black, White or Red to suit colour-coded wiring systems
- Durable polyamide housing for long service life
TYPICAL APPLICATIONS
| Extending soft wiring runs between desks or workstations |
| Permanent in-wall or in-desk installation points |
| Joining power modules across modular furniture |
| Concealed cable management installations |
ORDERING INFORMATION: Select the required colour above. Each combination is supplied with its own reference code. Pairs with the corresponding Female Installation Coupler to complete the connection.
COMPLIANCE & CERTIFICATION
| Standard | AS/NZS 61535 |
| Certification |
Installation should be carried out by a licensed electrician in accordance with local wiring rules.
EPN1105
