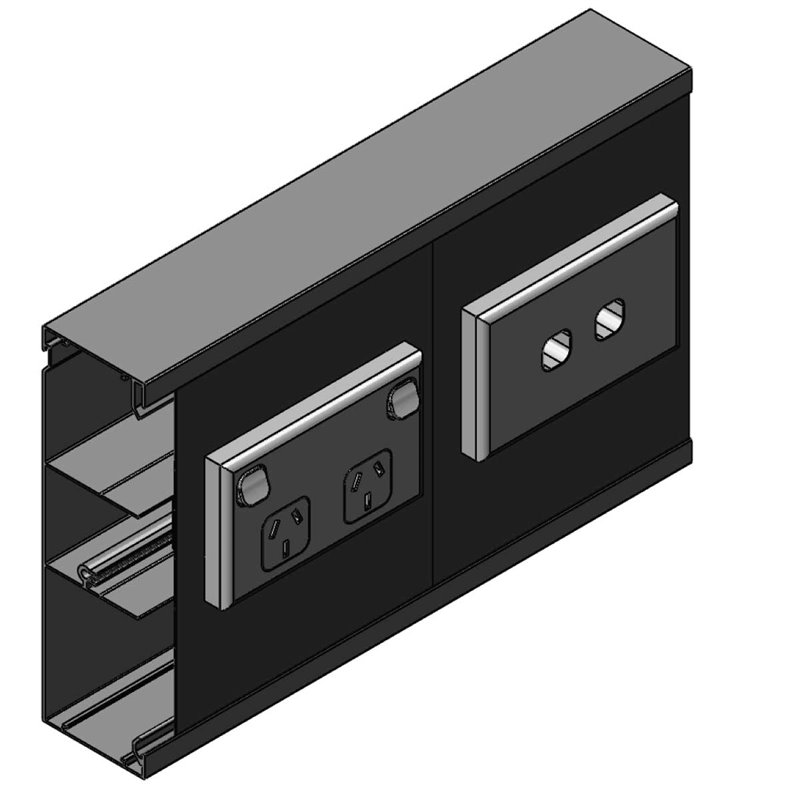

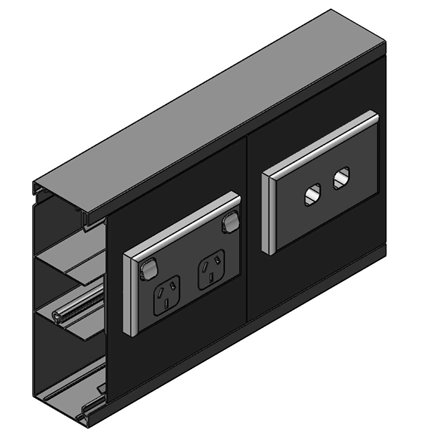

60 X 200mm X 2.4m 3 CHANNEL SKIRTING DUCT (SATIN BLACK) Made to Order

60 X 200mm X 2.4m 3 CHANNEL SKIRTING DUCT (Pearl White) Made to Order DUCT BODY ONLY

60mm x 200mm x 3 Division skirting duct perfect for large projects. 2.4m Length Pearl White finish.

MANUFACTURE TO ORDER





SD602003DW


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufacturer's warranty on all Cableaway sold products.

The SD602003DW is the aluminium duct body for Cableaway's 60mm x 200mm, 3 Division SD Series skirting duct in a Pearl White finish, supplied in 2.4m lengths. It mounts directly to the wall with no building modification required, giving a clean, flexible housing for power and data cabling in small to medium projects. The lid is sold separately.

TECHNICAL SPECIFICATIONS

Component Duct Body only (Lid sold separately)
Dimensions 60mm x 200mm
Divisions 3 Channel
Standard Length 2.4m
Material Aluminium extrusion
Finish Pearl White
Mounting Direct wall mount, no building modification required
Cable Compatibility Power, Cat 5/6/6A data, AV & multimedia (via 45 Series outlets)

KEY FEATURES

● Fast, easy wall-mounted installation with no building modification
● 3-division aluminium duct for combined power and data
● Compatible with Cableaway's full range of skirting duct accessories
● Also available in other SD Series finishes and sizes
● Part of Cableaway's SD Series aluminium skirting duct system

TYPICAL APPLICATIONS

● Commercial Office Fit-Outs ● Small to Medium Projects
● Home Office Cable Management ● Retail and Hospitality Fit-Outs
● Reticulation of Power & Data Cabling ● Data, AV & Multimedia Outlet Housing

ORDERING INFORMATION

Part Number SD602003DW
Series SD Series Aluminium Skirting Duct
Warranty Manufacturer's warranty

COMPLIANCE & INSTALLATION

Installation To be installed in accordance with AS/NZS 3000 (Wiring Rules) and all relevant Australian electrical standards
Electrical work Power outlets, data outlets and all wiring must be installed by a licensed electrician
Earthing Metal skirting duct and service columns must be earthed in accordance with AS/NZS 3000
