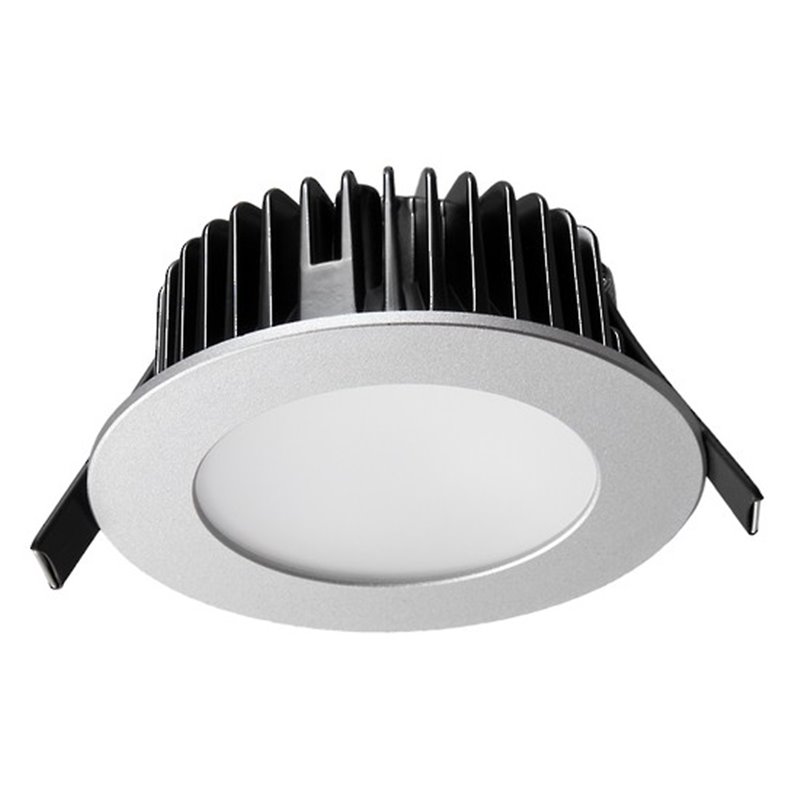

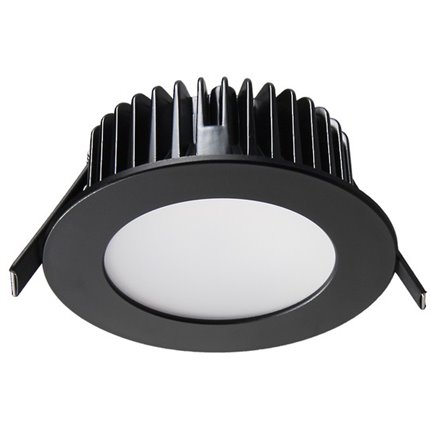

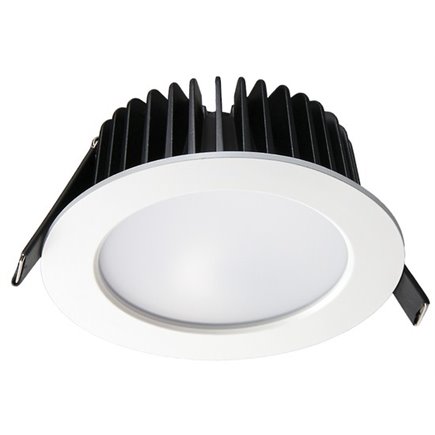

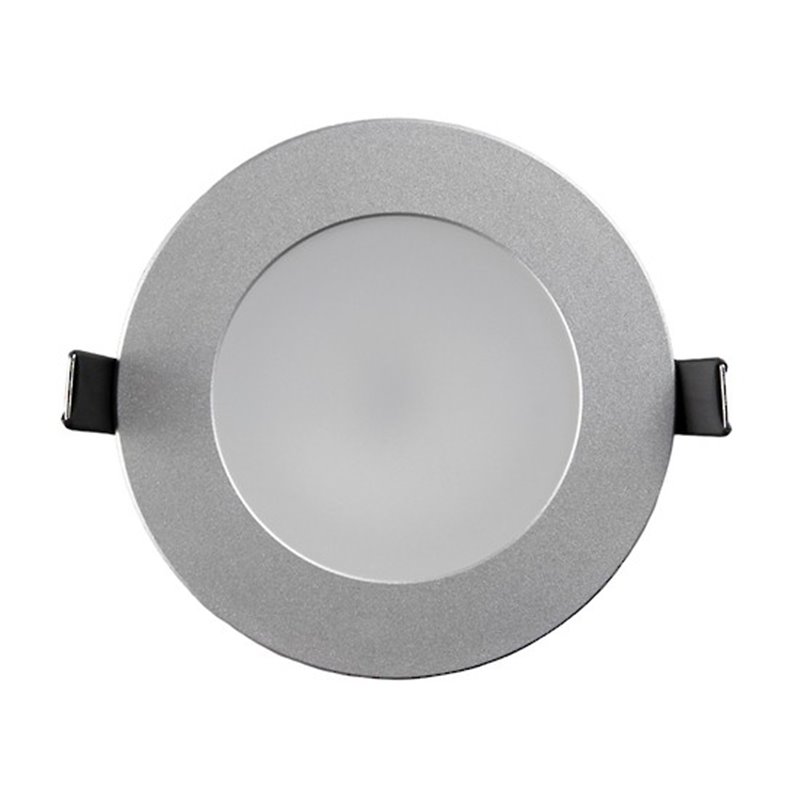

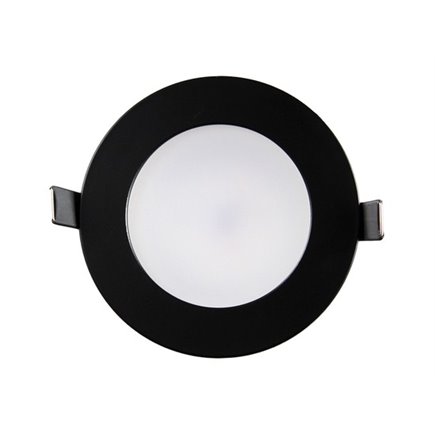

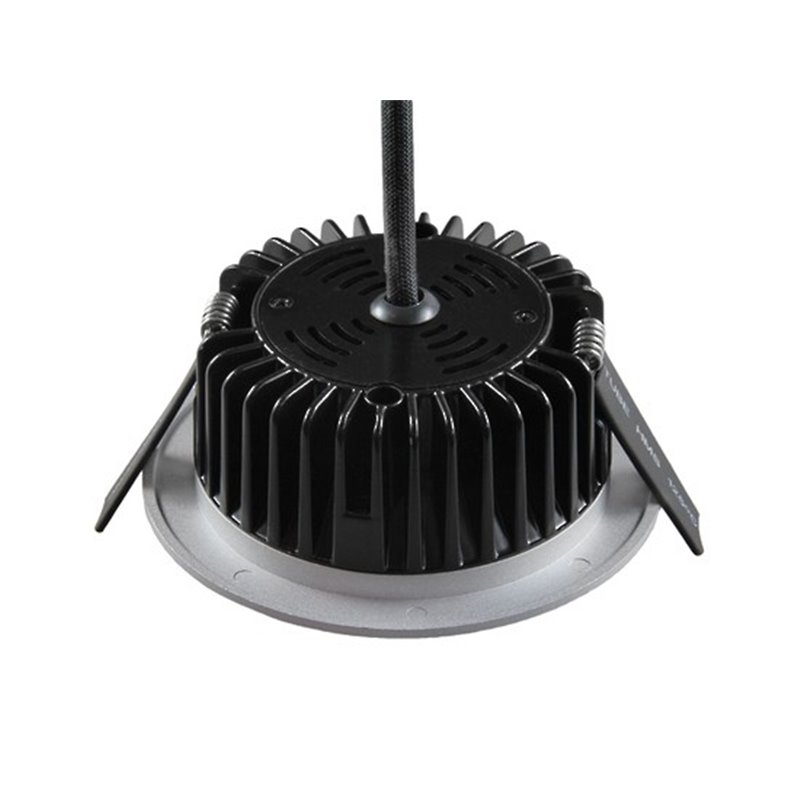

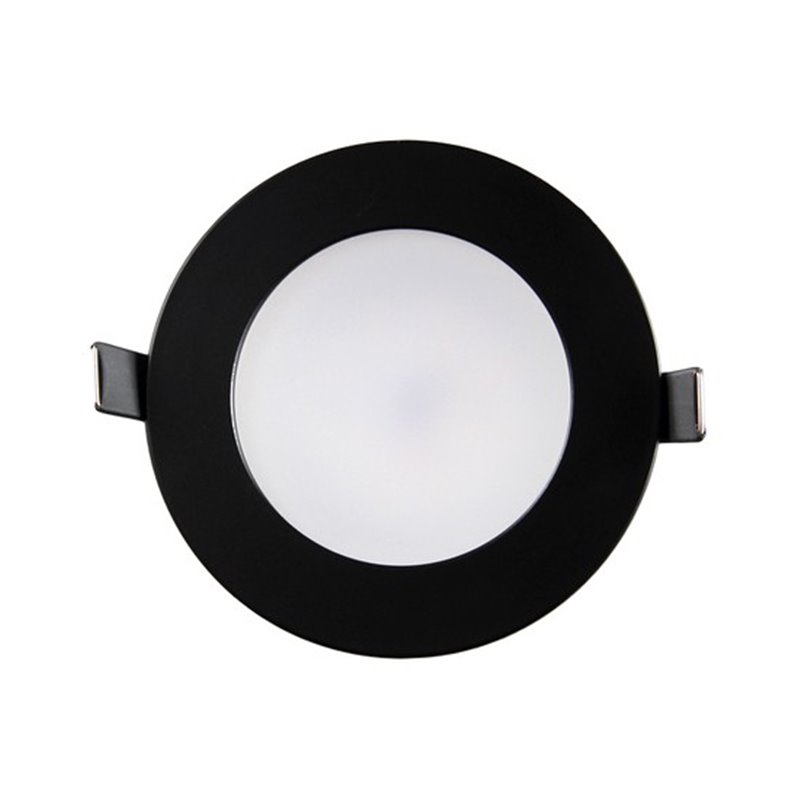

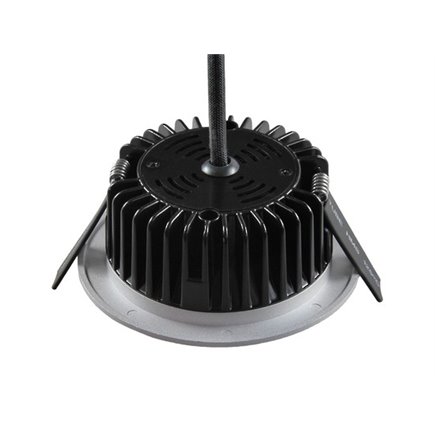

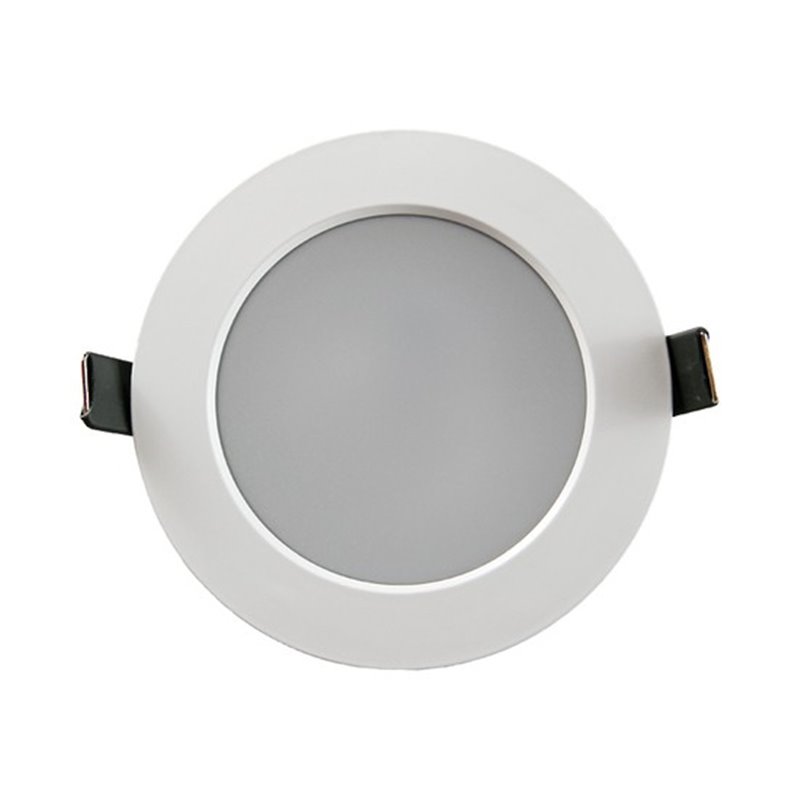

LEDDL90 - 90MM CUTOUT LED DOWNLIGHTS

0 Review(s)
LEDDL90 - 90MM

This dimmable LED downlight range covers most lighting levels required for residential applications. They are extremely robust and reliable, coming with a dimmable leading or trailing edge driver, and are designed to provide minimal glare.

  • Secure Payments are easier than ever! Eway’s payment solutions Secure Payments are easier than ever! Eway’s payment solutions
  • Delivery Option’s, you choose from our list of delivery partners Delivery Option’s, you choose from our list of delivery partners
  • Manufactures warranty on all Cableaway sold products. Manufactures warranty on all Cableaway sold products.

This dimmable LED downlight range covers most lighting levels required for residential applications. They are extremely robust and reliable, coming with a dimmable leading or trailing edge driver, and are designed to provide minimal glare. Their compact design means they can be installed into the tightest of cavity spaces and thermal management ensures maximum light output for an extended period of time.  The standard surround faceplates are available in white, silver and black.


FEATURES

  • Reduce Energy Costs by up to 50%
  • CE Rating – abutted & covered
  • External PF constant current driver
  • Only 20°c heat gain on heat sink
  • 3-Year Limited Warranty

IC-F Icon-707

TECHNICAL SPECIFICATIONS

CAT No.
LEDDL90-8XXLEDL90-15XX
Power Consumption 8W 15W
Output Voltage/Output Current 200-240V AC, 50/60Hz
Fixture Lumens 664lm (4000K)
624lm (3000K)
1241lm (4000K)
1170lm (3000K)
LED Lighting Efficiency 85lm/W
Colour Temperature (WW) Warm White 3000K
(NW) Natural White 4000K
Colour Rendering Ra>83
Power Factor >0.88 >0.95
IP Rating IP44 front face, IP20 driver
Lifespan 35,000 hours
LED SAMSUNG 5630 LM80, L70
Eco-friendly ROHS
Materials Oxidised Aluminium, High Quality PMMA
Driver Dimmable - leading or trailing edge. Short circuit protection
Working Temperature -20°c to 50°c
Dimensions 100mm Faceplate, 90mm Cutout
Faceplate Colours White, Black, Silver




















PRODUCT RANGE

CAT No.
Description
LEDDL90-8WW-WHITE 8W, Warm White (3000K) - White faceplate
LEDDL90-8NW-WHITE 8W, Natural White (4000K) - White faceplate
LEDDL90-8WW-BLACK 8W, Warm White (3000K) - Black faceplate
LEDDL90-8NW-BLACK 8W, Natural White (4000K) - Black faceplate
LEDDL90-8WW-SILVER 8W, Warm White (3000K) - Silver faceplate
LEDDL90-8NW-SILVER 8W, Natural White (4000K) - Silver faceplate
LEDDL90-15WW-WHITE 15W, Warm White (3000K) - White faceplate
LEDDL90-15NW-WHITE 15W, Natural White (4000K) - White faceplate
LEDDL90-15WW-BLACK 15W, Warm White (3000K) - Black faceplate
LEDDL90-15NW-BLACK 15W, Natural White (4000K) - Black faceplate
LEDDL90-15WW-SILVER 15W, Warm White (3000K) - Silver faceplate
LEDDL90-15NW-SILVER 15W, Natural White (4000K) - Silver faceplate
