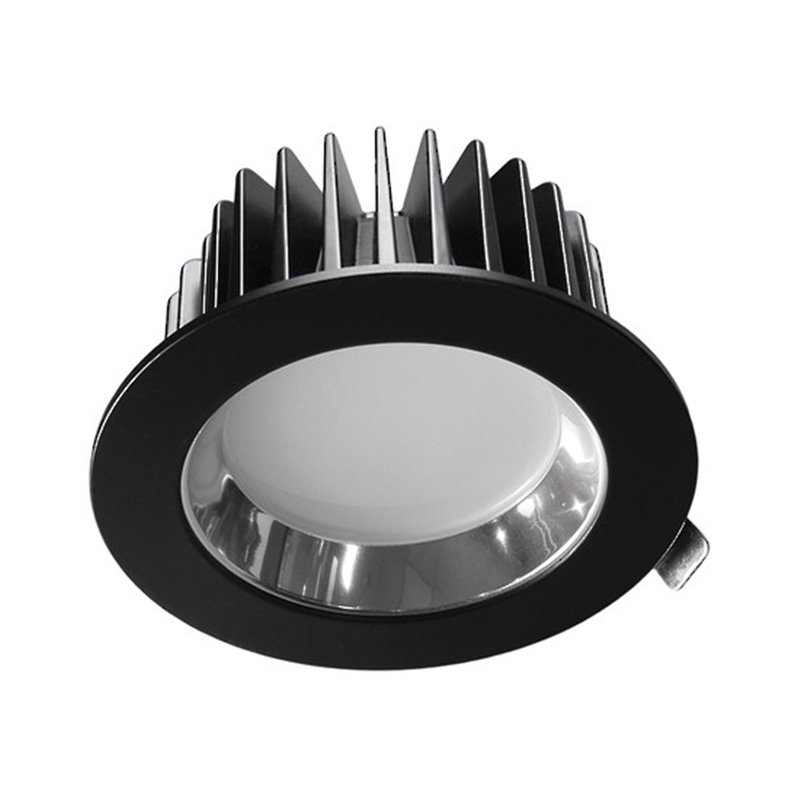

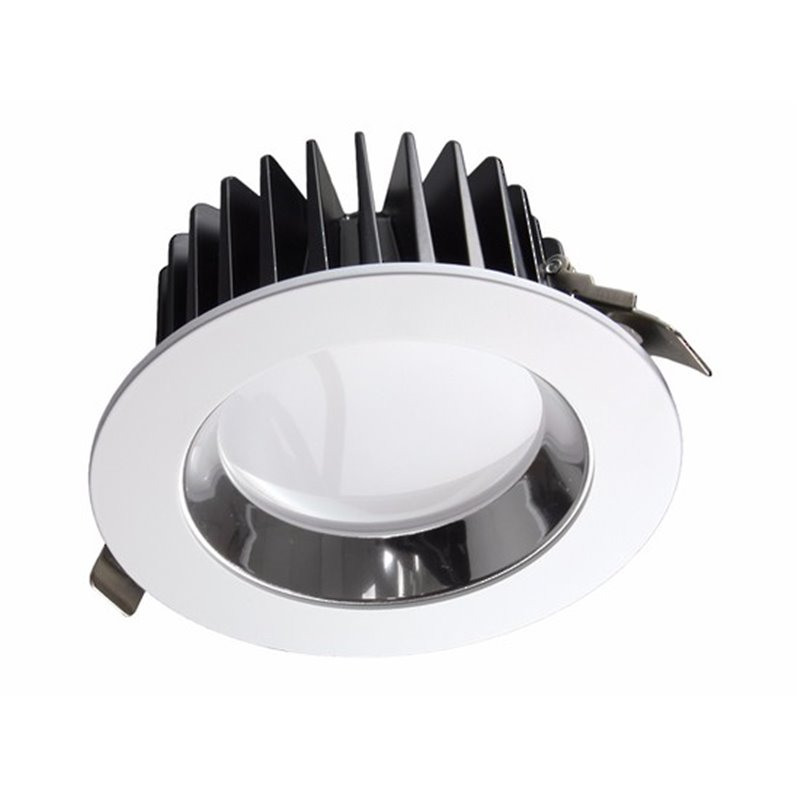

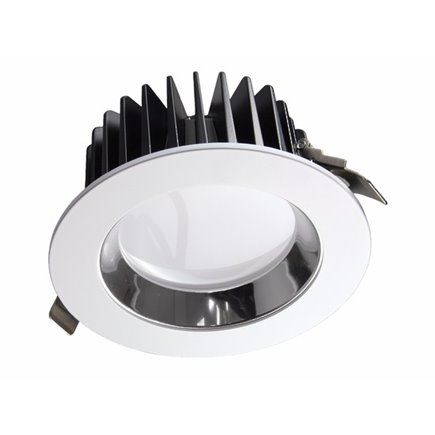

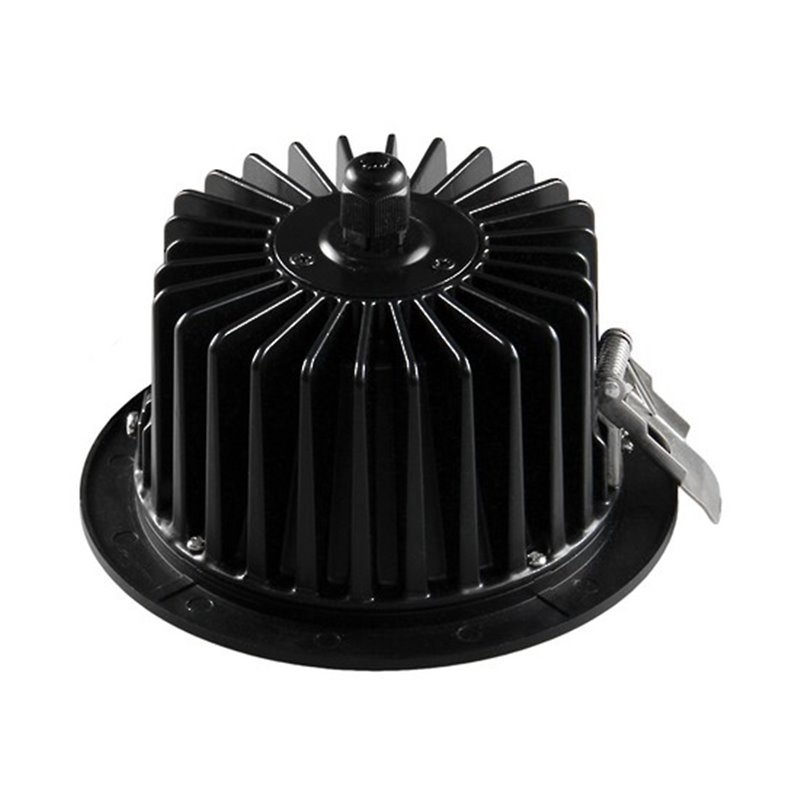

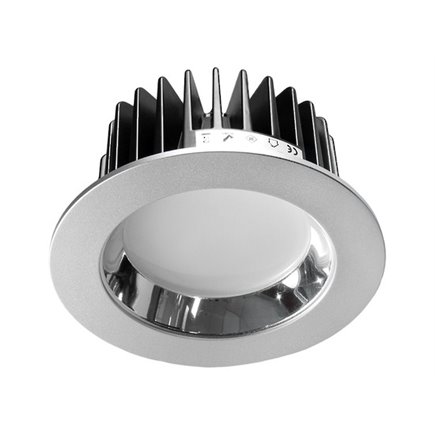

LEDDL125 - 125MM CUTOUT LED DOWNLIGHTS

0 Review(s)
LEDDL125 - 125MM

This dimmable residential and commercial LED downlight range covers most requirements for office, retail and residential applications. These downlights are extremely robust and reliable, coming with a dimmable leading or trailing edge driver, and are designed to provide minimal glare.

  • Secure Payments are easier than ever! Eway’s payment solutions Secure Payments are easier than ever! Eway’s payment solutions
  • Delivery Option’s, you choose from our list of delivery partners Delivery Option’s, you choose from our list of delivery partners
  • Manufactures warranty on all Cableaway sold products. Manufactures warranty on all Cableaway sold products.

This dimmable residential and commercial LED downlight range covers most requirements for office, retail and residential applications. These downlights are extremely robust and reliable, coming with a dimmable leading or trailing edge driver, and are designed to provide minimal glare. Their compact design means they can be installed into the tightest of cavity spaces and thermal management ensures maximum light output for an extended period of time.  Standard surround faceplates are available in white, silver and black.


FEATURES

  • Reduce Energy Costs by up to 50%
  • CE Rating – abutted & covered
  • External PF constant current driver
  • Only 20°c heat gain on heat sink
  • 3-Year Limited Warranty
IC-F Icon-707

TECHNICAL SPECIFICATIONS

CAT No.
LEDDL125-8WWLEDDL125-16XXLEDDL125-25XX
Power Consumption 8W 16W 25W
Output Voltage/Output Current 200-240V AC, 50/60Hz
Fixture Lumens 624lm (3000K) 1248lm (3000K)
1328lm (4000K)
1360lm (5000K)
1950lm (3000K)
2075lm (4000K)
2125lm (5000K)
LED Lighting Efficiency 85lm/W
Colour Temperature (WW) Warm White 3000K
(NW) Natural White 4000K
(PW) Pure White 5000K
Colour Rendering Ra>83
Power Factor >0.95
IP Rating IP44 front face, IP20 driver
Lifespan 35,000 hours
LED SAMSUNG LM80, L70
Eco-friendly ROHS
Materials Oxidised Aluminium, High Quality PMMA
Driver Dimmable - leading or trailing edge. Short circuit protection
Working Temperature -20°c to 50°c
Dimensions 145mm Faceplate, 125mm Cutout
Faceplate Colours White, Black, Silver




















PRODUCT RANGE

CAT No.
Description
LEDDL125-8WW-WHITE 8W, Warm White (3000K) - White faceplate
LEDDL125-8WW-BLACK 8W, Warm White (3000K) - Black faceplate
LEDDL125-8WW-SILVER 8W, Warm White (3000K) - Silver faceplate
LEDDL125-16WW-WHITE 16W, Warm White (3000K) - White faceplate
LEDDL125-16NW-WHITE 16W, Natural White (4000K) - White faceplate
LEDDL125-16PW-WHITE 16W, Pure White White (5000K) - White faceplate
LEDDL125-16WW-BLACK 16W, Warm White (3000K) - Black faceplate
LEDDL125-16NW-BLACK 16W, Natural White (4000K) - Black faceplate
LEDDL125-16PW- BLACK 16W, Pure White (5000K) - Black faceplate
LEDDL125-16WW-SILVER 16W, Warm White (3000K) - Silver faceplate
LEDDL125-16NW-SILVER 16W, Natural White (4000K) - Silver faceplate
LEDDL125-16PW-SILVER 16W, Pure White (5000K) - Silver faceplate
LEDDL125-25WW-WHITE 25W, Warm White (3000K) - White faceplate
LEDDL125-25NW- WHITE 25W, Natural White (4000K) - White faceplate
LEDDL125-25PW- WHITE 25W, Pure White (5000K) - White faceplate
LEDDL125-25WW-BLACK 25W, Warm White (3000K) - Black faceplate
LEDDL125-25NW-BLACK 25W, Natural White (4000K) - Black faceplate
LEDDL125-25PW-BLACK 25W, Pure White (5000K) - Black faceplate
LEDDL125-25WW-SILVER 25W, Warm White (3000K) - Silver faceplate
LEDDL125-25NW-SILVER 25W, Natural White (4000K) - Silver faceplate
LEDDL-125-25PW-SILVER 25W, Pure White (5000K) - Silver faceplate
