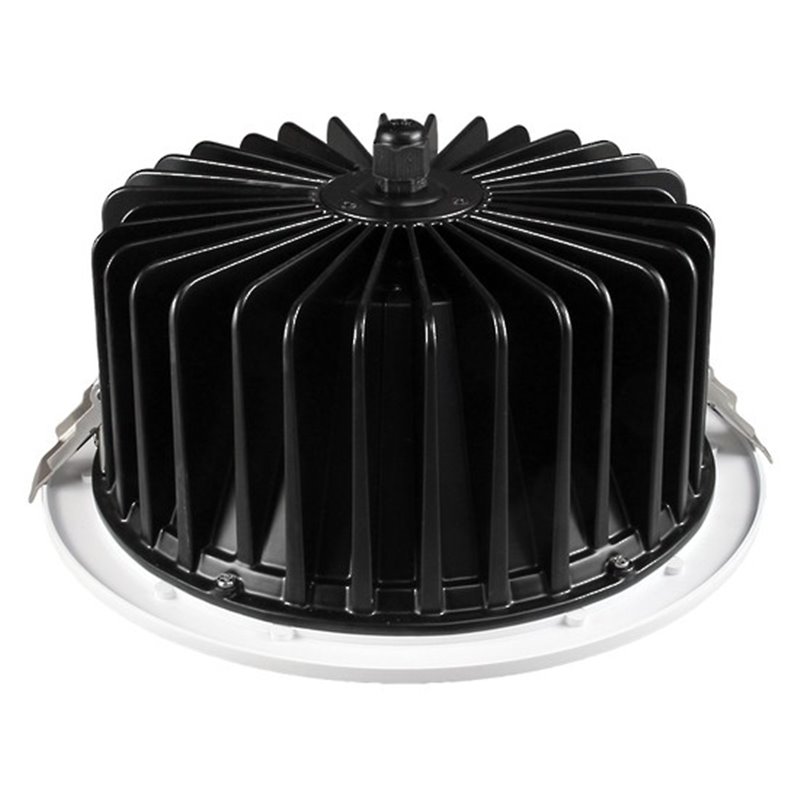

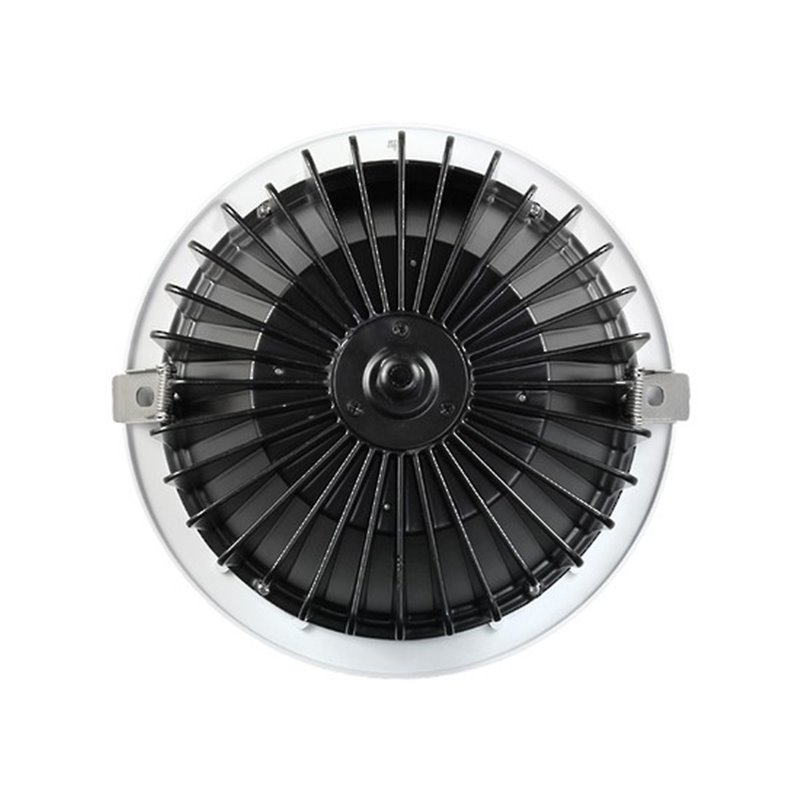

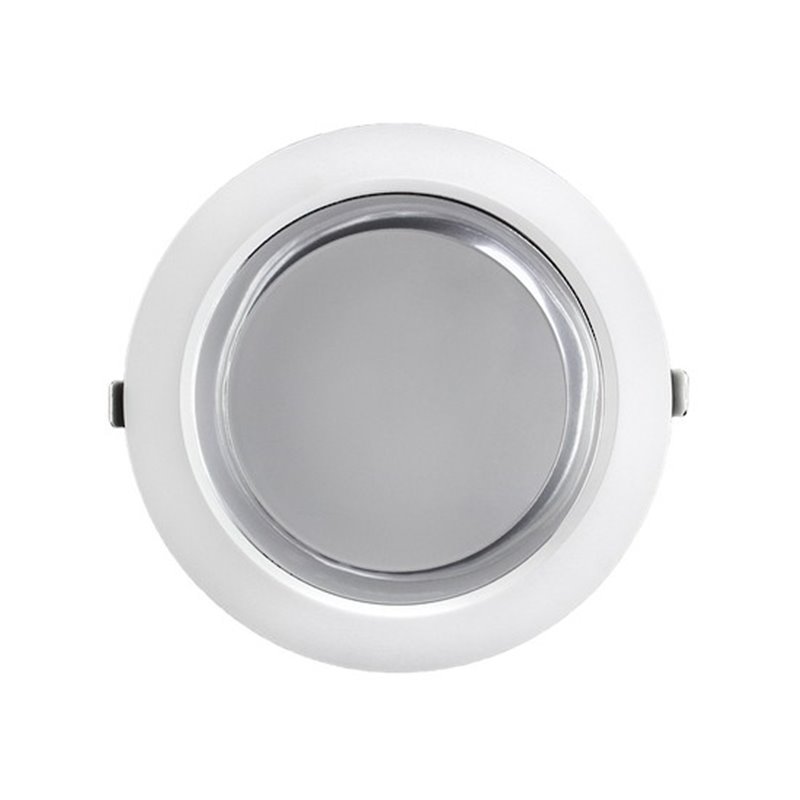

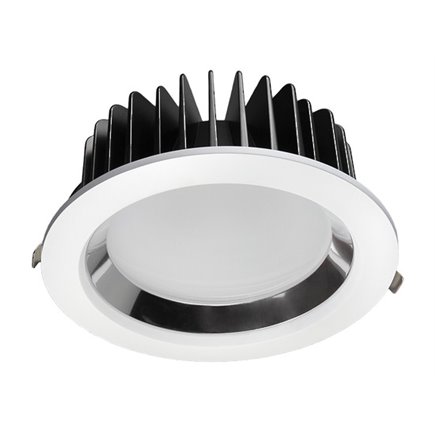

LEDDL210 - 210MM CUTOUT LED DOWNLIGHTS

0 Review(s)
LEDDL210 - 210MM

This dimmable LED downlight range covers most lighting levels required for residential applications. They are extremely robust and reliable, coming with a dimmable leading or trailing edge driver, and are designed to provide minimal glare.

  • Secure Payments are easier than ever! Eway’s payment solutions Secure Payments are easier than ever! Eway’s payment solutions
  • Delivery Option’s, you choose from our list of delivery partners Delivery Option’s, you choose from our list of delivery partners
  • Manufactures warranty on all Cableaway sold products. Manufactures warranty on all Cableaway sold products.

This dimmable LED downlight range covers most lighting levels required for residential applications. They are extremely robust and reliable, coming with a dimmable leading or trailing edge driver, and are designed to provide minimal glare. Their compact design means they can be installed into the tightest of cavity spaces and thermal management ensures maximum light output for an extended period of time.  The standard surround faceplate is white, black and silver are available on special order. Dali and 1-10V driver options are also available on special request.


FEATURES

  • Reduce Energy Costs by up to 50%
  • IC Rating – abutted & covered
  • External PF constant current driver
  • Only 20°c heat gain on heat sink
  • Three Year Limited Warranty
IC-F Icon-707

TECHNICAL SPECIFICATIONS

Cat No. LEDDL210-32xx-WHITE LEDDL210-45NW-WHITE
Power Consumption 32W 45W
Input Voltage/Output Current 200-240V AC, 50/60Hz
Fixture Lumens 2495lm (3000K)
2656lm (4000K)
2720lm (5000K)
4220lm (4000K)
LED Lighting Efficiency 85lm/W
Colour Temperature (WW) Warm White 3000K
(NW) Natural White 4000K
(PW) Pure White 5000K
Colour Rendering Ra>83
Power Factor >0.95
IP Rating IP44 front face, IP20 driver
Lifespan 35,000 hours
LED SAMSUNG LM80, L70
Eco-friendly ROHS
Materials Oxidised Aluminium, High Quality PMMA
Driver Dimmable - leading or trailing edge. Short circuit protection
Working Temperature -20°c to 50°c
Dimensions 230mm Faceplate, 210mm Cutout
Faceplate Colours White

** This rating is for downlights only, the driver is excluded.  It is recommended the driver is positioned on the closest ceiling joist, in free air with good ventilation
