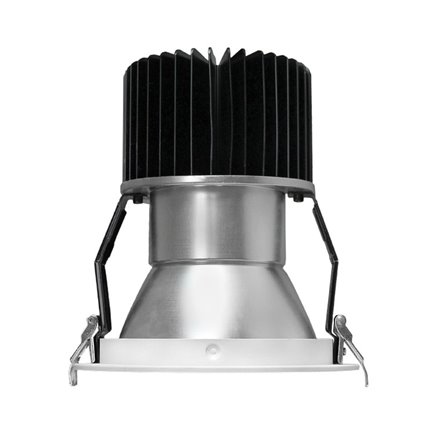

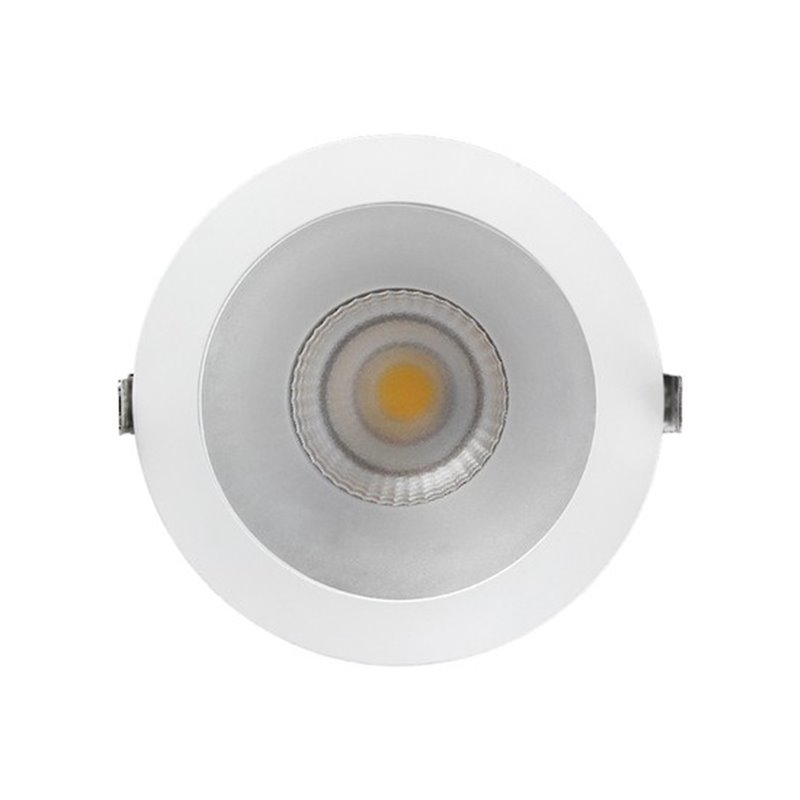

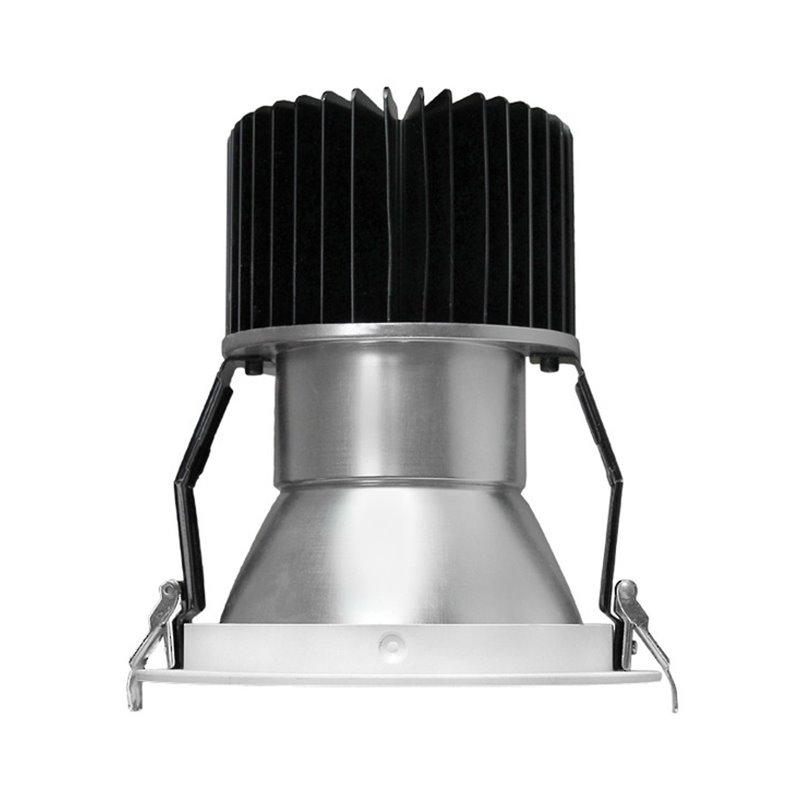

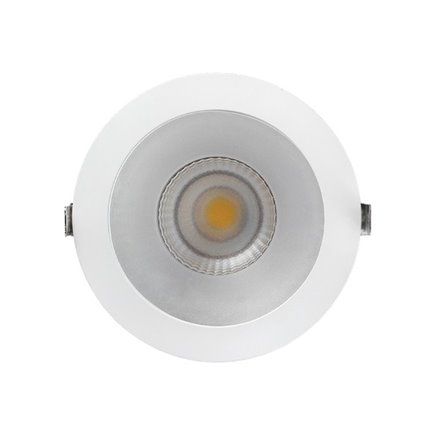

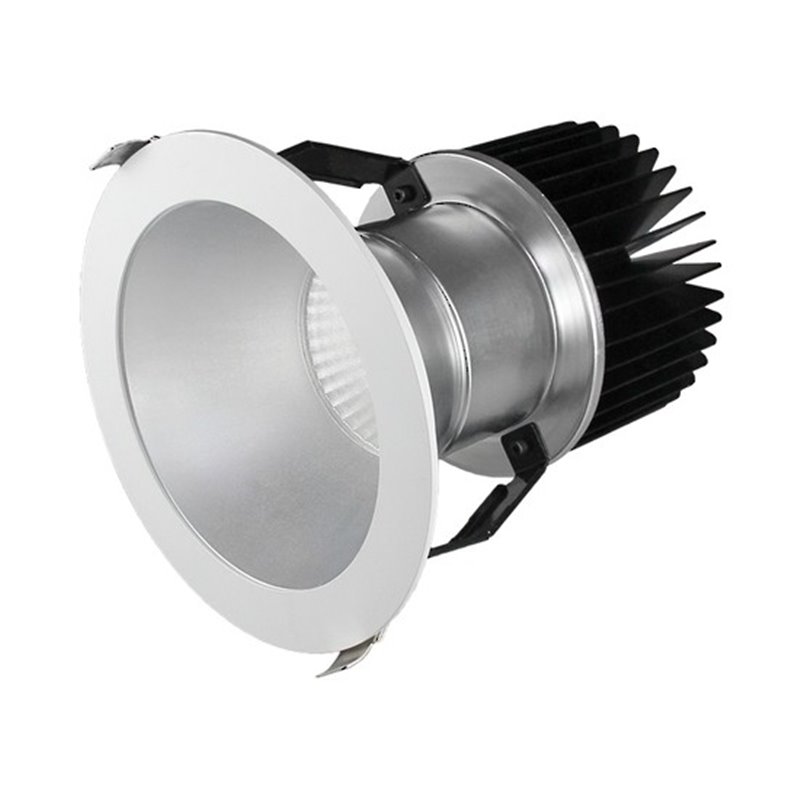

LEDDL - DIMMABLE DEEP RECESSED LED DOWNLIGHTS
LEDDL
The commercial LED downlight range covers most requirements for office, classroom and retail applications. These downlights are extremely robust, reliable and come with a dimmable driver enhancing efficiency.
-
Secure Payments are easier than ever! Eway’s payment solutions
-
Delivery Option’s, you choose from our list of delivery partners
-
Manufactures warranty on all Cableaway sold products.
The commercial LED downlight range covers most requirements for office, classroom and retail applications. These downlights are extremely robust, reliable and come with a dimmable driver enhancing efficiency.
This downlight is an ideal replacement for 150W metal halide downlights in high-mounting ceilings.
FEATURES
- Reduce Energy Costs by up to 50%
- External dimmable driver (1-10V)
- Three Year Limited Warranty
- Comes with a secondary suspension mounting wire for enhanced safety
TECHNICAL SPECIFICATIONS
|
CAT No.
| LEDDL175-70AC | LEDDL210-70AC | LEDDL260-38NW-WHITE |
|---|---|---|---|
| Power Consumption | 70W | 38 | |
| Input Voltage/Output Current | 200-240V AC, 50/60Hz | ||
| Fixture Lumens | 5132lm (4000K) | 3228lm (4000K) | |
| LED Lighting Efficiency | 75lm/W | ||
| Colour Temperature | Natural White 4000K Pure White 5000K Cool White 6000K |
||
| Colour Rendering | Ra>85 | ||
| Power Factor | >0.95 | ||
| IP Rating | IP20 | ||
| Lifespan | 35,000 hours | ||
| LED | CITIZEN LM80, L70 | ||
| Eco-friendly | ROHS | ||
| Materials | Oxidised Aluminium, Glass | ||
| Beam Angle | 50° | 45° | |
| Driver | Dimmable (1-10V) | ||
| Dimensions | 190mm Faceplate, 175mm Cutout | 230mm Faceplate, 210mm Cutout | 280mm Faceplate, 260mm Cutout |
Add suffix: PW=Pure white
NW=Natural white
