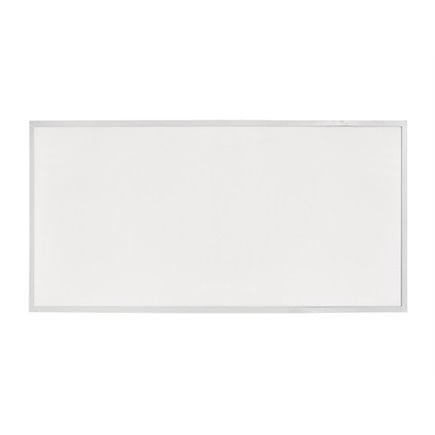

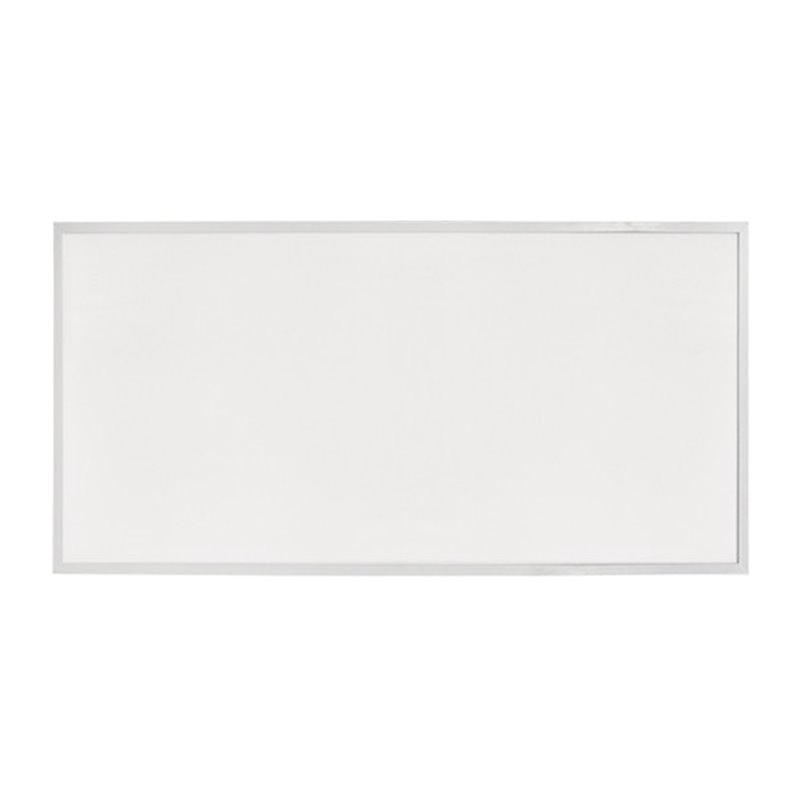

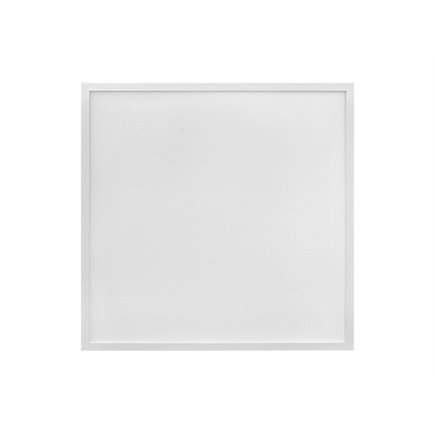

LEDPNLA CEILING PANELS
The LEDPNLA LED troffer is an economical solution for retrofit applications and where a higher lumen package is desired, compared to LEDOPL. At only 11mm in depth the LEDPNLA can fit into the tightest of ceiling cavities with ease.
Secure Payments are easier than ever! Eway’s payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
The LEDPNLA LED troffer is an economical solution for retrofit applications and where a higher lumen package is desired, compared to LEDOPL. At only 11mm in depth the LEDPNLA can fit into the tightest of ceiling cavities with ease. Multiple mounting and dimming options are available. A high output (HO) Pure White (5000K) 60W version is available for higher ceilings and retail areas.
APPLICATIONS
- Offices
- Educational facilities
- Amenity lighting
- General workspaces
- Retail areas
TECHNICAL SPECIFICATIONS
| LED Sources | 36W, 38W, 60W (HO) |
| Power Factor | >0.9 |
| Colour Rendering Index | Ra>80 |
| Colour Temperature | (NW) Natural White 4000K (PW) Pure White 5000K |
| LED Chip | EPISTAR |
| Operating Range | 0°c to 40°c |
| IP Rating | IP20 standard (IP54 available on request) |
| UGR | <22 |
| Lifespan (TM-21) | >50,000 hours L70 B10 |
| SDCM | <6 |
| Materials | Powder coated aluminium frame, PS diffuser |
| Driver | XZ as standard, other options available on special request |
| Mounting Options | Recess, surface, suspended |
| Dimensions | 595mm x 595mm x 11mm (36W) 1195mm x 295mm x 11mm (36W) 1195mm x 595mm x 11mm (38W/60W) |
PRODUCT RANGE
| Cat No. | Power | Lumens | Dimmable | Weight |
|---|---|---|---|---|
| LEDPNLA-6X6-36-NW* | 36W | 3400 | No | 4.0kg |
| LEDPNLA-6X6-36-NW-D* | 36W | 3400 | Yes | 4.0kg |
| LEDPNLA-6X6-36-PW | 36W | 3600 | No | 4.0kg |
| LEDPNLA-6X6-36-PW-D | 36W | 3600 | Yes | 4.0kg |
| LEDPNLA-3X12-36-NW | 36W | 3400 | No | 4.0kg |
| LEDPNLA-3X12-36-NW-D | 36W | 3400 | Yes | 4.0kg |
| LEDPNLA-6X12-38-NW | 38W | 3600 | No | 7.8kg |
| LEDPNLA-6X12-38-NW-D | 38W | 3600 | Yes | 7.8kg |
| LEDPNLA-6X12-60-PW | 60W (HO) | 7200 | No | 7.8kg |
| LEDPNLA-6X12-60-PW-D | 60W (HO) | 7200 | Yes | 7.8kg |
*Higher lm/W (4100lm) model available on special request
ACCESSORIES
- LED-FRAME-6X6-PANEL -600x600x50mm Surface mount frame for wall or ceiling mounting
- LED-FRAME-3X12-PANEL -300x1200x50mm Surface mount frame for wall or ceiling mounting
- LED-FRAME-6X12-PANEL -600x1200x50mm Surface mount frame for wall or ceiling mounting
- LEDPANEL-DIMMER -Wall knob dimming kit, can control up to 15 panels (special request drivers only)
- LEDPANEL-SECU-W -Recessed mount protection wire (6 wire set), 400-1000mm adjustable wire
- LEDPANEL-SUSP-W -Ceiling mount suspension wire (6 wire set), 400-1000mm adjustable wire
- LEDPANEL-RF-DIMM -Wall knob dimmer with remote
- LEDPANEL-RECESSKIT -Recess mounting clip set for panel lights (6 pack)
Panels can be recessed, surface mounted, wall mounted or suspended
