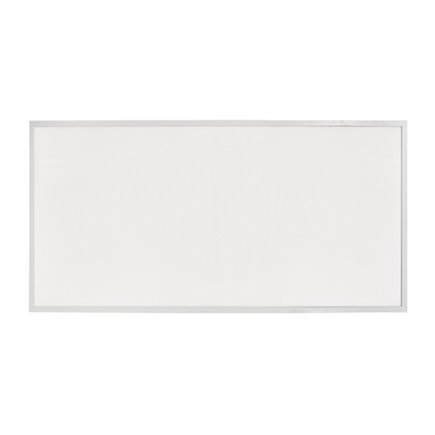

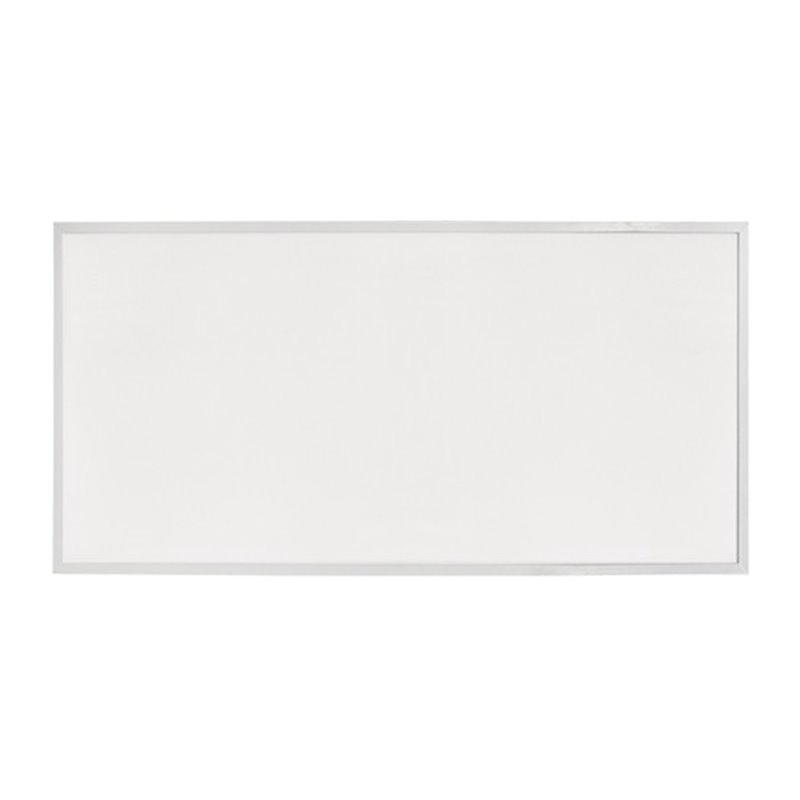

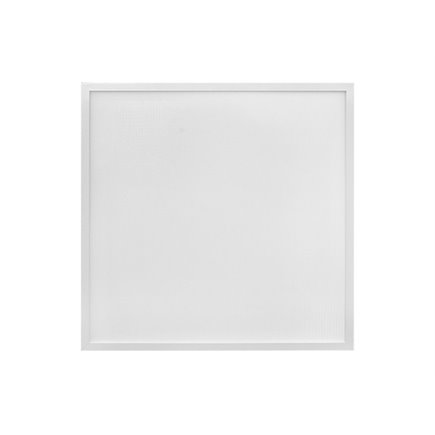

LEDOPL CEILING PANELS

0 Review(s)
LEDOPL

The LEDOPL series of LED troffers is economical and low- glare (UGR <19). At only 11mm in depth an LEDOPL can fit into the tightest of ceiling cavities with ease.  Multiple mounting and dimming options are available. A high output (HO) 60W version is available for higher ceilings and retail areas.

  • Secure Payments are easier than ever! Eway’s payment solutions Secure Payments are easier than ever! Eway’s payment solutions
  • Delivery Option’s, you choose from our list of delivery partners Delivery Option’s, you choose from our list of delivery partners
  • Manufactures warranty on all Cableaway sold products. Manufactures warranty on all Cableaway sold products.
The LEDOPL series of LED troffers is economical and low- glare (UGR <19). At only 11mm in depth an LEDOPL can fit into the tightest of ceiling cavities with ease.  Multiple mounting and dimming options are available. A high output (HO) 60W version is available for higher ceilings and retail areas.

APPLICATIONS

  • Offices
  • Educational facilities
  • Amenity lighting
  • General workspaces
  • Retail areas

TECHNICAL SPECIFICATIONS

LED Sources 36W, 38W, 60W (HO)
Power Factor >0.9
LED Lighting Efficiency 94lm/W @ 4000K
100lm/W @ 5000K
Colour Rendering Index Ra>80
Colour Temperature (NW) Natural White 4000K
(3000K & 5000K available on special request)
LED Chip EPISTAR
Operating Range 0°c to 40°c
IP Rating IP20 standard (IP54 available on request)
UGR <19
Lifespan (TM-21) >50,000 hours L70 B10
SDCM <6
Materials Powder coated aluminium frame, PMMA diffuser
Driver XZ as standard, other options available on special request
Mounting Options Recess, surface, suspended
Dimensions 595mm x 595mm x 11mm (36W)
1195mm x 595mm x 11mm (38W/60W)


PRODUCT RANGE

Cat No.PowerLumensDimmableWeight
LEDOPL-6X6-36-NW 36W 3350 No 2.3kg
LEDOPL-6X6-36-NW-D 36W 3350 Yes 2.3kg
LEDOPL-6X12-38-NW 38W 3550 No 5kg
LEDOPL-6X12-38-NW-D 38W 3550 Yes 5kg
LEDOPL-6X12-60-NW-D 60W 5600 Yes 5kg

ACCESSORIES

  • LED-FRAME-6X6-PANEL    -600x600x50mm Surface mount frame for wall or ceiling mounting
  • LED-FRAME-3X12-PANEL  -300x1200x50mm Surface mount frame for wall or ceiling mounting
  • LED-FRAME-6X12-PANEL  -600x1200x50mm Surface mount frame for wall or ceiling mounting
  • LEDPANEL-DIMMER          -Wall knob dimming kit, can control up to 15 panels (special request drivers only)
  • LEDPANEL-SECU-W          -Recessed mount protection wire (6 wire set), 400-1000mm adjustable wire
  • LEDPANEL-SUSP-W          -Ceiling mount suspension wire (6 wire set), 400-1000mm adjustable wire
  • LEDPANEL-RF-DIMM        -Wall knob dimmer with remote
  • LEDPANEL-RECESSKIT     -Recess mounting clip set for panel lights (6 pack)

Panels can be recessed, surface mounted, wall mounted or suspended
