LED LINEAR OFFICE/SCHOOL LIGHTS
LED LINEAR

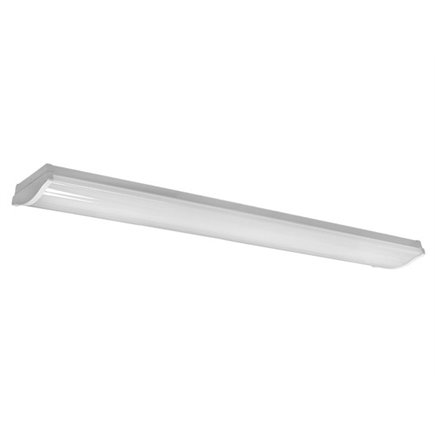

This attractive LED school and office light comes with powder-coated white aluminium body and opaque acrylic lens. Options are available in different lumen outputs and lengths depending on project requirement.
-
Secure Payments are easier than ever! Eway’s payment solutions
-
Delivery Option’s, you choose from our list of delivery partners
-
Manufactures warranty on all Cableaway sold products.
This attractive LED school and office light comes with powder-coated white aluminium body and opaque acrylic lens. Options are available in different lumen outputs and lengths depending on project requirement. This fitting is designed for flush mounting to ceilings and walls or can be suspended. The Osram driver is inbuilt with internal Wago quick disconnector.
APPLICATIONS
- Offices
- Schools
- Foyers
- Hospitals
- Public buildings
TECHNICAL SPECIFICATIONS
| Cat No. | LEDOLxx00-xx-NW |
|---|---|
|
Power Consumption
|
50W, 70W
|
| Fixture Lumens | 4250lm (50W), 5950lm (70W) |
| Colour Temperature | 4000K (NW) |
|
Luminous Efficacy
|
85lm/W
|
|
Colour Rendering (Ra)
|
>83
|
|
IP Rating
|
IP20
|
|
LED
|
EPISTAR 2835
|
|
Driver
|
Osram
|
|
Input Power
|
220-240V/50Hz |
|
Power Factor
|
0.9 |
|
Dimmable
|
No (dimming on special order) |
|
Ambient Temperature
|
-10°C to 45°C |
|
Material
|
White powder-coated rolled steel body with high quality opaque PMMA |
| Dimensions | 1200x208x70mm (50W) 1500x208x70mm (50W) 1500x208x70mm (70W) |
| Cable | 1m white 3 core cable with NZ 3 pin plug |
| Cat No. | Product Dimensions | Power | Lumens |
|---|---|---|---|
|
LEDOL1200-50-NW
|
1200x208x70mm
|
50W | 4250lm |
| LEDOL1500-50-NW | 1500x208x70mm | 50W | 4250lm |
| LEDOL1500-70-NW | 1500x208x70mm | 70W | 5950lm |
