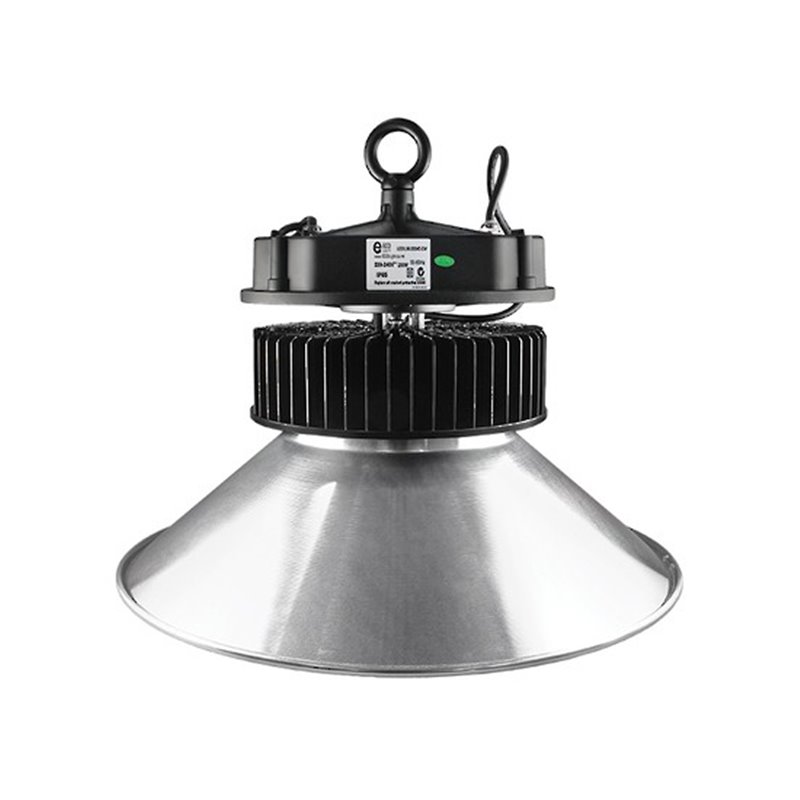

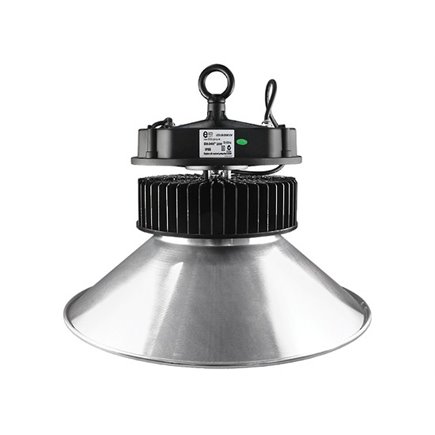

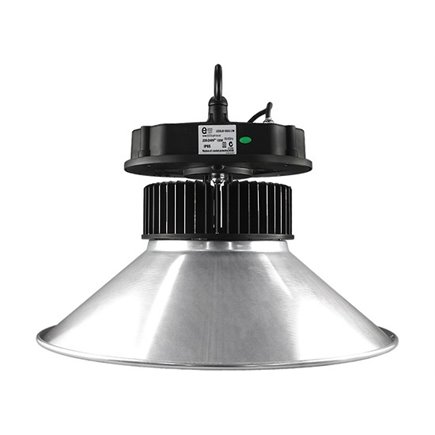

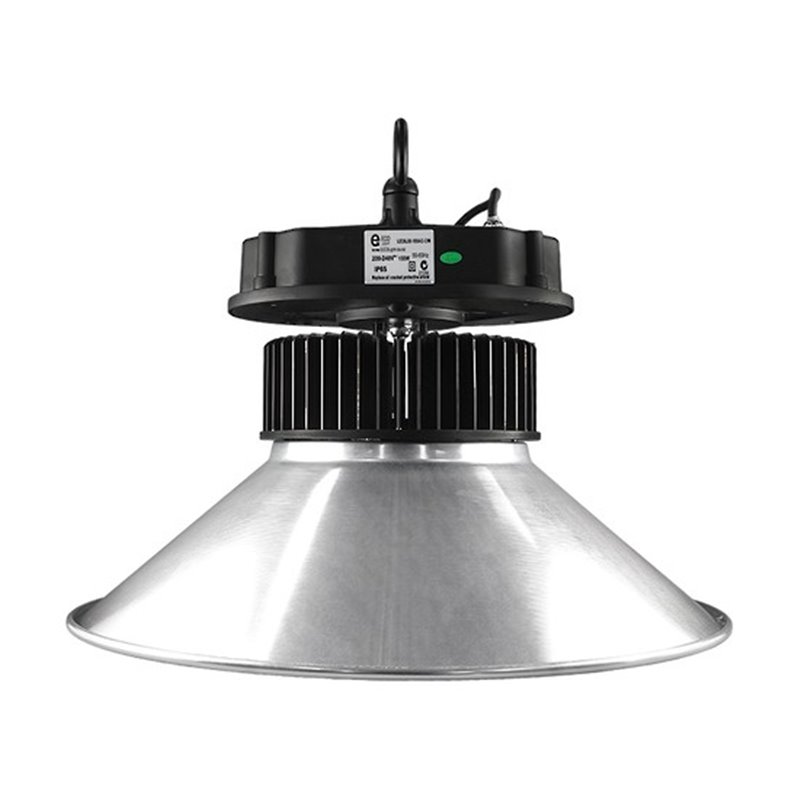

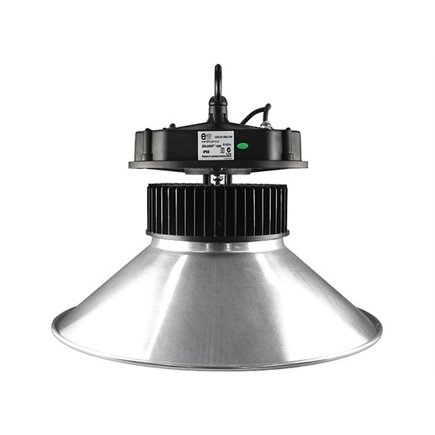

LEDIL56 - COMMERCIAL HIGH BAY FITTING
The LEDIL56 range of LED high bays delivers exceptional performance with a high lumen output using 155lm/W Luxeon LED driven by Xitanium IP67, 1-10V drivers.
Secure Payments are easier than ever! Eway’s payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
The LEDIL56 range of LED high bays delivers exceptional performance with a high lumen output using 155lm/W Luxeon LED driven by Xitanium IP67, 1-10V drivers.
This comes with options of beam angles, 60⁰ Medium & 120⁰ wide angle depending on aisles , mounting heights and density.
These also have option of acrylic diffusers or aluminium reflectors.
TECHNICAL SPECIFICATIONS
| Power Consumption | 150W & 200W Options | ||
| Fixture Lumens | 4000K | 5000K | 5700K |
|
150W
|
22,500lm
|
23,250lm | 23,500lm |
|
200W
|
30,000lm
|
31,000lm | 31,250lm |
| LED Lighting Efficiency | 155lm/W | ||
|
Colour Temperature
|
CW: 5700K (Ex-stock)
NW: 4000K, PW: 5000K (on special order) |
||
|
Colour Rendering (Ra)
|
>70 (Ex-stock)
>80 (on special order) |
||
|
Beam Angles
|
120° Wide Ali shroud (Ex-stock)
60° Narrow - PC or Ali shrouds (on special order) |
||
|
Driver
|
Xitanium IP67
|
||
|
Control
|
1-10V Dimmable (Dali or inbuilt Merrytek daylight sensor on special order)
|
||
| IP Rating | IP65 | ||
|
Calculated L70/B10
|
50,000 hours
|
||
|
SDCM
|
<6
|
||
|
LED Array
|
Luxeon 3030
|
||
|
UGR
|
<22
|
||
|
Impact Resistance
|
IK10 | ||
| Ambient Temperature | -30°C to +50°C | ||
| Power Factor | 0.95 | ||
| Body Weight | 150W = 4.4kg, 200W = 5.2kg | ||
| Input Voltage | 220-240V AC | ||
| Material | Cold pressed Ali with inbuilt copper heat pipe | ||
| Coating | Anti-corrosion powder-coat | ||
| Cables | 3 core power, 3m length with NZ plug 2 core dimming, 500mm length |
||
