Floor Outlet Box 2 Standard GPO Stainless Steel Flush 245 Series

Floor Outlet Box 2 Standard Outlet Provisions Stainless Steel Flush 245 Series

$328.90
Tax included

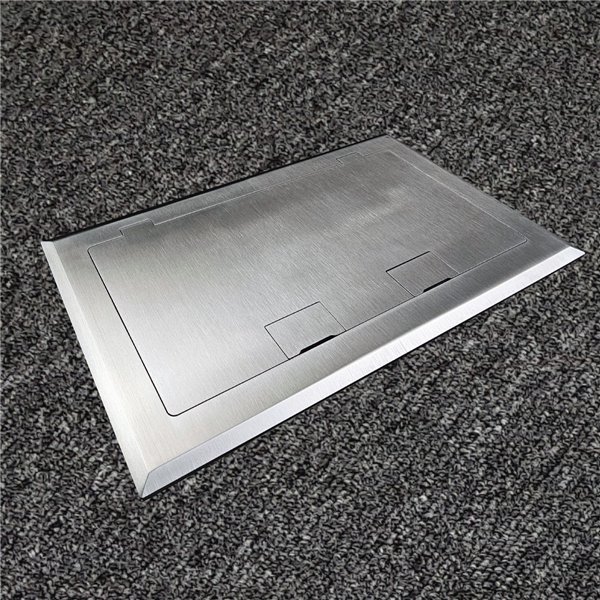

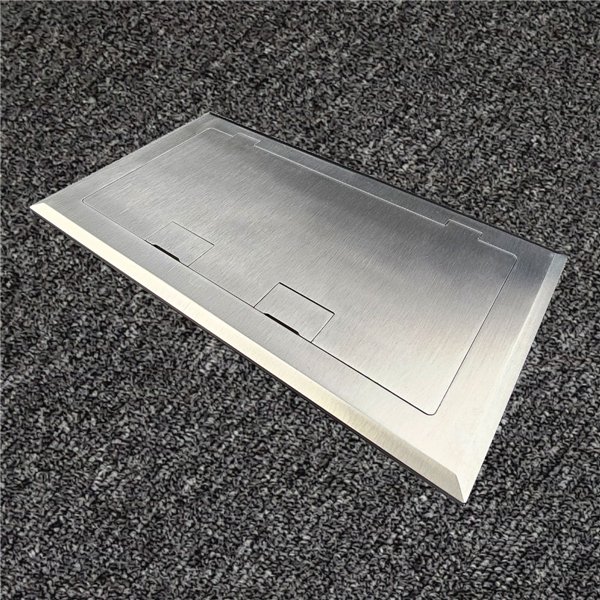

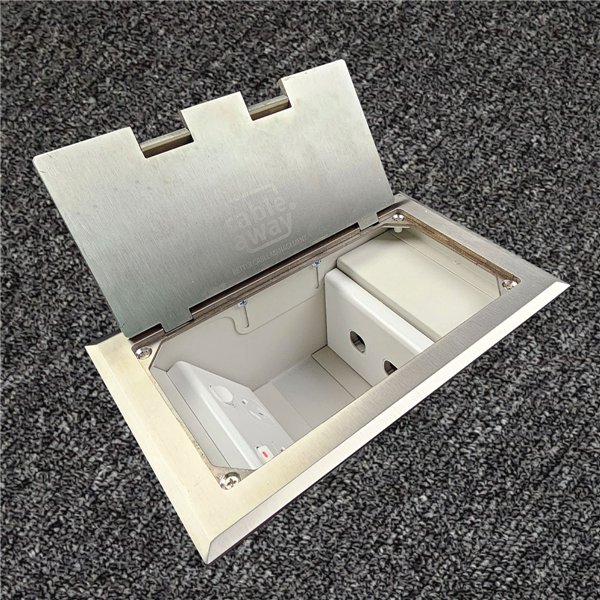

The FB245SSF2STDO floor outlet box comes complete with a height-adjustable stainless steel flush lid and provision for 2x standard outlets






FB245SSF2STDO
Quantity



Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The FB245SSF2STDO floor outlet box comes complete with a height-adjustable stainless steel flush lid and provision for 2 x standard outlets.

TECHNICAL SPECIFICATIONS

Part Number FB245SSF2STDO
Lid Type Flush, Square Edge
Lid Finish Stainless Steel
Carcass Type Standard Depth (107mm)
Outlet Configuration Provision for 2 x Standard Outlets
Body Material Powder Coated Zinc Anneal Steel
Frame & Lid Material Stainless Steel
Conduit Knockouts 25mm
Weight 4.0 kg (approx.)

DIMENSIONS

LID WIDTH
145 mm
LID LENGTH
245 mm
CARCASS WIDTH
125 mm
CARCASS LENGTH
225 mm
CARCASS DEPTH
107 mm
DEPTH INC. LID
112 mm

KEY FEATURES

  • ● Height-adjustable stainless steel flush lid with a square edge profile
  • ● Standard 107mm body depth for versatile floor installations
  • ● Powder coated zinc anneal steel body for durability and corrosion resistance
  • ● Frame and lid manufactured from stainless steel
  • ● 25mm knockouts provided for easy conduit entry
  • ● Provision for 2 x standard outlets

TYPICAL APPLICATIONS

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

ORDERING INFORMATION

Part Number FB245SSF2STDO
Series 245 Series Floor Outlet Boxes (Square Flush Lid)
Warranty Manufacturer's warranty

COMPLIANCE & CERTIFICATION

Standards AS/NZS 3100, AS/NZS 3112, AS/NZS 3133, IEC 60670.23
Certification RCM & SAA Approved
Installation Must be installed by a licensed electrician in accordance with AS/NZS 3000 (Wiring Rules)
FB245SSF2STDO

Data sheet

FLOOR BOX LID TYPE
FLUSH FINISH LID SECTION
FLOOR BOX LID FINISH TYPE
STAINLESS STEEL FINISH
FLOOR BOX CARCASS TYPE
STANDARD DEPTH CARCASS BOX
POWER OUTLET CAPACITY
1 - STANDARD DGPO OUTLET
DATA OUTLET CAPACITY
1 - 6 DATA VIA STANDARD GRID PLATE
