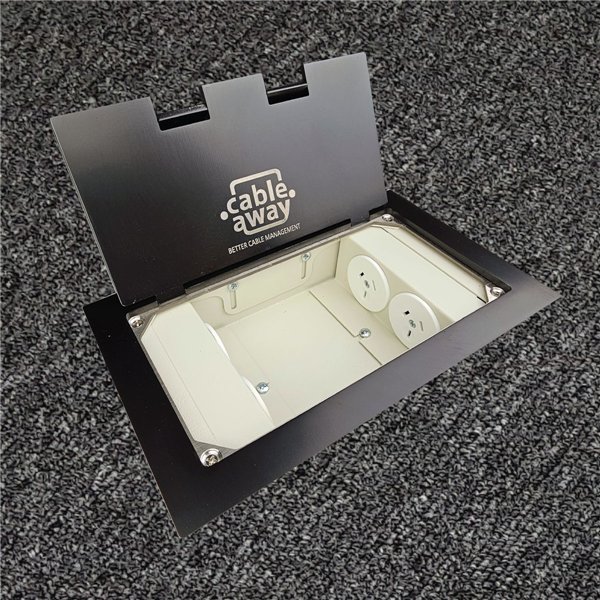

The FB245SSBF4PS50-SE floor outlet box has a black stainless steel square edge flush lid and 4 x 10 A auto switched outlets. Finished height 56 mm, adjustable to 81 mm on the adjustable mounting bracket.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufacturer's warranty on all Cableaway sold products.
The FB245SSBF4PS50-SE is a shallow 245 Series floor outlet box with a black stainless steel square edge flush lid and 4 x 10 A auto switched outlets. It sits at a finished height of 56 mm and can be raised to 81 mm on the adjustable mounting bracket to suit the floor build-up.
| Finished height 56 mm adjustable to 81 mm via the adjustable mounting bracket |
|
| Part number | FB245SSBF4PS50-SE |
| Carcass | Shallow, 50 mm deep |
| Body | W 225 x L 125 mm (140 mm over fixing lugs) |
| Lid | Black stainless steel square edge flush, 245 x 145 mm |
| Outlets | 4 x 10 A auto switched outlets, 2 x cable exit flaps |
| Knockouts | 12 x 25 mm diameter |
| Body material | Powder coated zinc anneal steel |
| Standards | AS/NZS 3100, AS/NZS 3112, AS/NZS 3133, IEC 60670.23 |
| Certification | RCM & SAA Approved |
| Installation | Must be installed by a licensed electrician in accordance with AS/NZS 3000 (Wiring Rules) |
Data sheet
