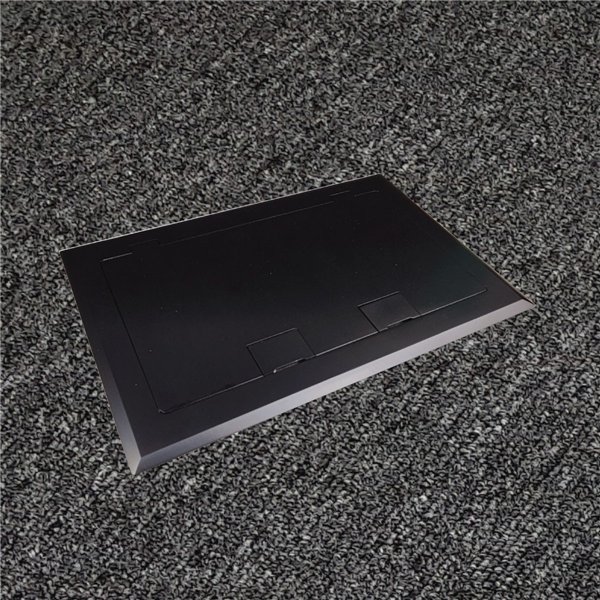

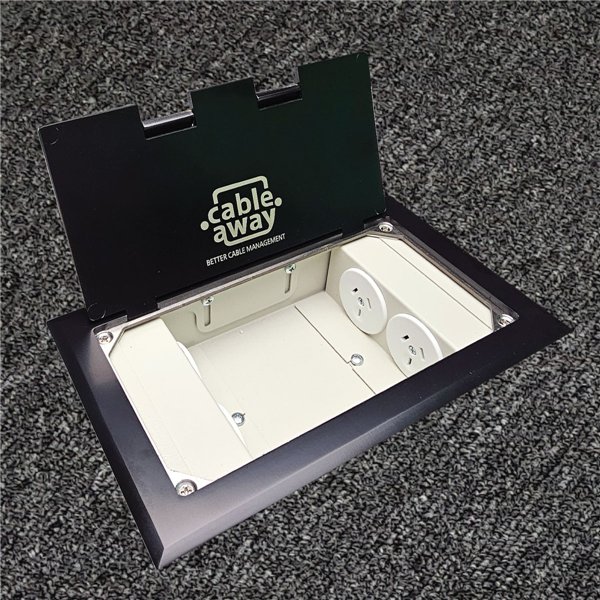

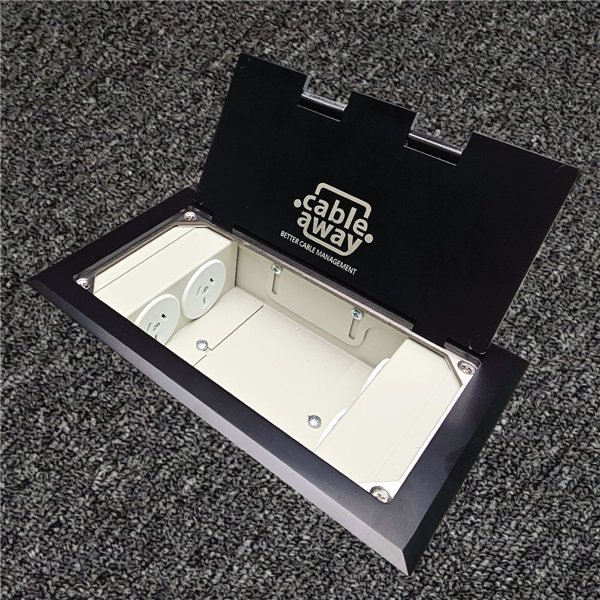

Floor Outlet Box 4 x 10amp Auto Swiched Outlets - Stainless Steel Black Flush Lid  245 Series (Shallow)

Floor Outlet Box 4 x 10amp Auto Switched Outlets - Stainless Steel Black Flush Lid 245 Series (Shallow)

The FB245SSBF4PS50 floor outlet box has a black stainless steel flush lid and 4 x 10 A auto switched outlets. Finished height 52 mm, adjustable to 77 mm on the adjustable mounting bracket.







FB245SSBF4PS50


Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufacturer's warranty on all Cableaway sold products.

The FB245SSBF4PS50 is a shallow 245 Series floor outlet box with a black stainless steel flush lid and 4 x 10 A auto switched outlets. It sits at a finished height of 52 mm and can be raised to 77 mm on the adjustable mounting bracket to suit the floor build-up.

Finished height
52 mm adjustable to 77 mm via the adjustable mounting bracket
Part number FB245SSBF4PS50
Carcass Shallow, 50 mm deep
Body W 225 x L 125 mm (140 mm over fixing lugs)
Lid Black stainless steel flush, 245 x 145 mm
Outlets 4 x 10 A auto switched outlets, 2 x cable exit flaps
Knockouts 12 x 25 mm diameter
Body material Powder coated zinc anneal steel

COMPLIANCE & CERTIFICATION

Standards AS/NZS 3100, AS/NZS 3112, AS/NZS 3133, IEC 60670.23
Certification RCM & SAA Approved
Installation Must be installed by a licensed electrician in accordance with AS/NZS 3000 (Wiring Rules)
FB245SSBF4PS50

Data sheet

FLOOR BOX LID TYPE
FLUSH FINISH LID SECTION
FLOOR BOX LID FINISH TYPE
STAINLESS STEEL BLACK FINISH
FLOOR BOX CARCASS TYPE
SHALLOW DEPTH CARCASS BOX
POWER OUTLET CAPACITY
1 - 4 SINGLE AUTO SWITCHED POWER OUTLETS
