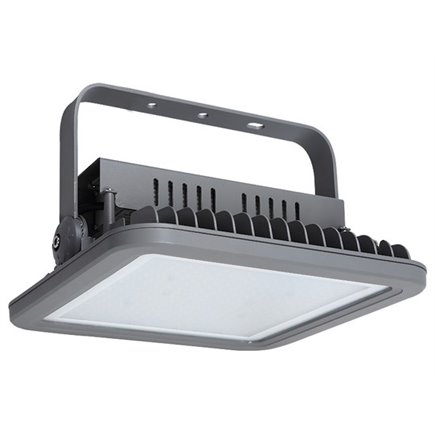

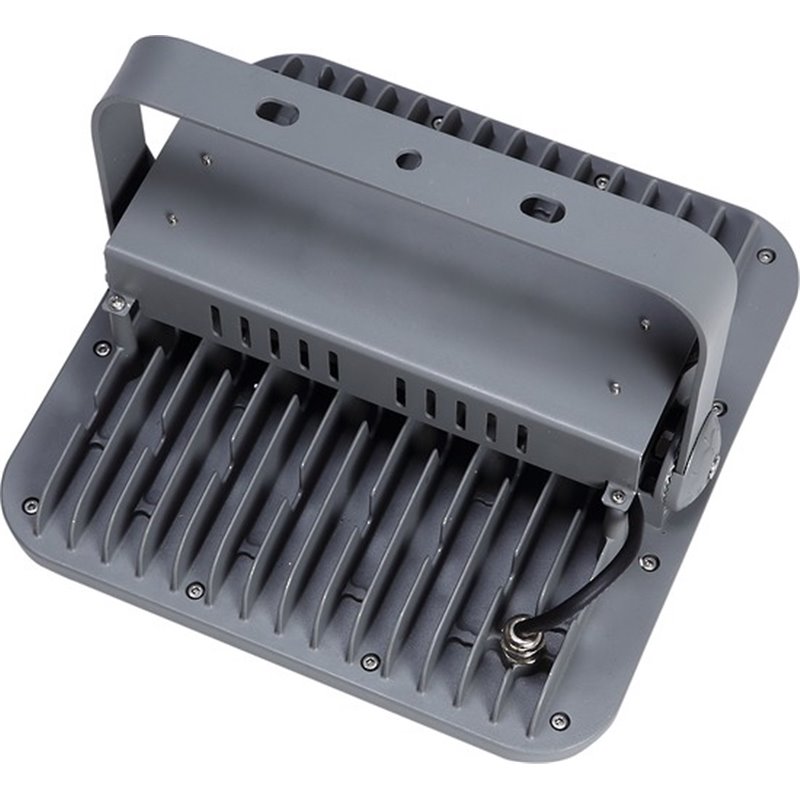

LEDFL16 COMMERCIAL & INDUSTRIAL LED FLOODLIGHTS 80-200W
LEDFL16-80-200W
The LEDFL16 series delivers high lumens and is great value for lumens per watt. These LED floodlights are IP65 rated, and the range includes 30° and 110° beam angles.
-
Secure Payments are easier than ever! Eway’s payment solutions
-
Delivery Option’s, you choose from our list of delivery partners
-
Manufactures warranty on all Cableaway sold products.
The LEDFL16 series delivers high lumens and is great value for lumens per watt. These LED floodlights are IP65 rated, and the range includes 30° and 110° beam angles.
FEATURES
- High Luminous Efficiency: up to 110lm/w
- Multiple options of beam angle to meet different application requirements
- External power supply (IP67), dimming function and light control system can be added
- Low weight for easy mounting and maintenance - 80 watt only 5.3kgs, 200 watt only 7.5kgs
- Adjustable U type bracket is easily for mounting
- Supplied with 2m flex & NZ plug
- Housing made of die cast aluminium with a zinc chromate substrate and powder coating finish
- Galvanised steel bracket with locking screws
APPLICATIONS
- Warehouses
- Train stations
- Workshops
- Sports fields
- Airports
- Docks
- Billboards
TECHNICAL SPECIFICATIONS
|
Fixture/Part No.
|
LEDFL16[N]-80AC | LEDFL16[N]-140AC | LEDFL16[N]-200AC |
| Input Voltage | 80W | 140W | 200W |
| Lumens | 8800lm | 15,400lm | 22,000lm |
| Luminous Efficiency | 110lm/W | ||
| Frequency | 50Hz | ||
| Colour Temperature | 5000K | ||
| Colour Rendering (Ra) | 70 | ||
| IP Rating | IP65 | ||
|
IK Rating
|
IK08
|
||
|
Power Factor
|
>0.95
|
||
|
Voltage
|
240V AC | ||
| Operating Temperature | -40°C ~ +40°C | ||
| Lifespan (TM-21) | L70 B50 >60,000 hours | ||
| Dimensions | 300x300x261mm | 380x380x261mm | |
|
Beam Angle
|
110° Standard 30° Narrow (N) |
||
| Weight (kg) | 5.3 | 7.5 | |
