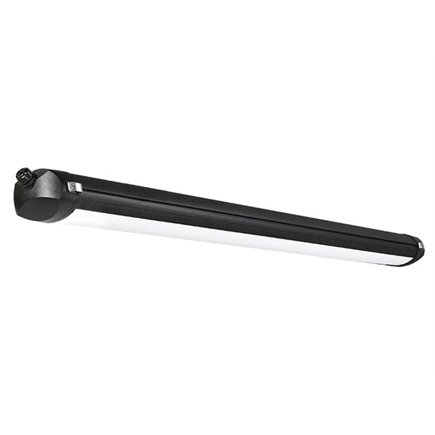

LEDIBL - INDUSTRIAL BATTEN LIGHTS 50W

0 Review(s)

Reference: LEDIBL

The LEDIBL-50ACPW is a high powered industrial batten light. This fitting is weather and impact resistant delivering high lumens with dimming functionality.

Not available online contact us to purchase

Add to Wishlist

Add to Compare

Secure Payments are easier than ever! Eway’s payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.

Description
Product Details

The LEDIBL-50ACPW is a high powered industrial batten light. This fitting is weather and impact resistant delivering high lumens with dimming functionality.
Designed to be either mounted individually or connected into a continuous linear ‘end to end’ lighting solution.
This fitting is ideal for Gymnasiums, halls, supermarkets or anywhere where high lumens are required, or locations with high mounting height.

FEATURES

IP65 rated
IK10 rated
Dimmable (0-10V DC)
Polycarbonate cover and 6063 Aluminium with Anodic oxide coating

IDEAL FOR

Supermarkets
Retail stores
Exhibition halls
Parking buildings
Office buildings
Libraries
Schools
Tunnels
Public Transport stations
Factories
Warehousing

TECHNICAL SPECIFICATIONS

CAT No.	LEDIBL-50ACPW
Total Power	50W
LED Lumens	6500lm
Fixture Lumens	5000lm
LED Chip & LM80 report	Seoul Semiconductor Company Brand, Model 5630 or 3030 with LM80 report
TM21 report	Yes
Fixture Efficiency	100~110lm/W
Colour Temperature	4000K or 5000K
Colour Rendering (Ra)	Ra>80
Beam Angle	Wide Beam (80°)
IP Rating	IP65
IK Rating	IK10
Lifespan (based on L70 hrs)	>50,000 hours
Eco-friendly	Yes
Operation Temperature	-40°C to 40°C
Weight	6kg
Size	1600x138x95mm
Dimmable	0-10V DC
Power Factor	0.98
Input Voltage Range	120-277V AC
Housing Construction	Stretched aluminium with Anodic oxide coating
PC Cover	Milky PC wide beam angle
Aluminium properties	6063 aluminium
