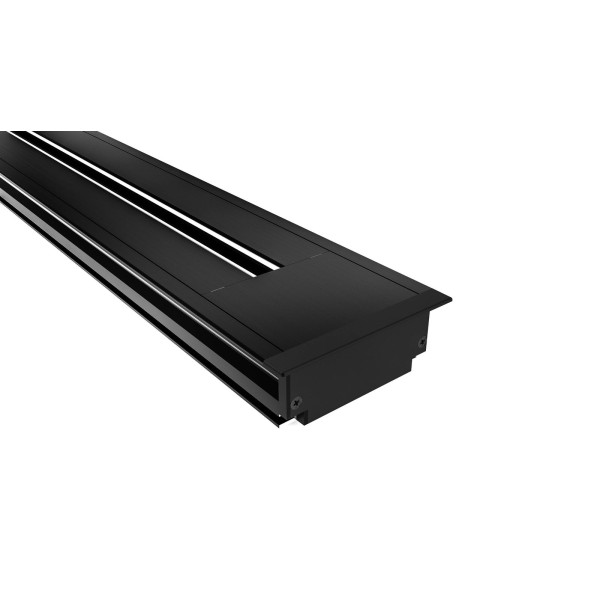

Line8 Custom & Recessed Power Track — Made to Order
$0.00
Tax included
Made-to-order Line8 power tracks – recessed or surface mount, custom lengths, all eight finishes, lock option and HDMI / data / USB multimedia modules. Enquire for a quote.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
Line8 power tracks made to suit your project. Specify recessed or surface mounting, custom track lengths, any of the eight Line8 finishes, socket quantities, a commercial lock mechanism and integrated multimedia modules. Ideal for architects, interior designers, joiners, builders and electrical contractors. Send us your layout and requirements and our team will prepare a quotation.
TECHNICAL SPECIFICATIONS
| Mounting | Recess mount (flush) or surface mount |
| Track Lengths | Made to order – contact us with your required lengths |
| Finishes | Black, Silver, Bronze, Champagne Gold, Matte Ivory White, Alpine Spruce, Rovasco Chestnut, Tipuana Rosewood |
| Socket Ring Options | Chrome Ring / Onyx Black |
| Terminal Side | Left / Right |
| Lock Option | Locking mechanism – sockets slide along the track but cannot be removed |
| Multimedia Modules | Feed-through HDMI, Cat6 data, USB and coaxial connections |
| Socket Capacity | Up to 14 sockets per metre |
| Current Rating | 32A per track |
| Warranty | 5 years |
KEY FEATURES
- ● Recessed tracks sit flush with the surface for a clean, integrated finish
- ● Install into a prepared recess to the published track dimensions – plan the recess before ordering
- ● Combine power and AV/data in one track with multimedia modules
- ● Lock option suits public, education, aged care and hospitality spaces
- ● Matches the standard Line8 finishes and sockets
TYPICAL APPLICATIONS

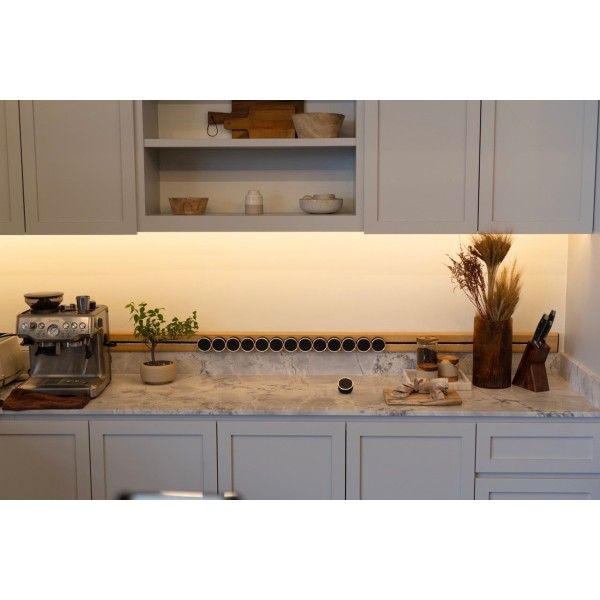

- ● Kitchens, butler's pantries and island benches
- ● Joinery, cabinetry and furniture integration – desks, workstations, vanities and bedside units
- ● Offices, boardrooms and meeting rooms
- ● Hotels, airport and hospitality lounges
- ● Aged care, medical and healthcare facilities
- ● Schools, universities and community centres
- ● Retail, laboratories and light industrial spaces
ORDERING INFORMATION
| Part Number | Made to order – quoted per project |
| To Quote, Please Provide | Mounting type, track length(s), finish, terminal side, socket quantity and ring colour, lock option and any multimedia modules |
| Samples | Finish and track samples available on request |
COMPLIANCE & CERTIFICATION
| Power Track Standard | AS/NZS 3100 |
| Power Socket Standard | AS/NZS 3112 |
| Approval | RCM marked – approved for use in Australia & New Zealand |
| Quality & Test | ISO 9001 manufacturing, IEC 61534 certified |
| Technology | Patented (WO 2017/007420 and others) |
| Installation | Must be installed by a licensed electrician. Wires to the end terminal in the same way as a standard GPO – no special tools required |
DOWNLOADS
| Recess-Mount Power Track Specification (PDF) | View / Download |
| Surface-Mount Power Track Specification (PDF) | View / Download |
| Multimedia Module Specification (PDF) | View / Download |
| Recess-Mount Installation Guide | View / Download |
| Surface-Mount Installation Guide | View / Download |
