50 X 105mm X 2.0m PVC SKIRTING DUCT (WHITE) DUCT BODY ONLY
50mm x 105mm PVC Skirting Duct body, 2m lengths, white. Non-metallic, IP40 rated, suits Cat5e/Cat6/Cat6A data and power. Sold without cover — pair with the 85mm PVC Skirting Duct Lid.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufacturer's warranty on all Cableaway sold products.

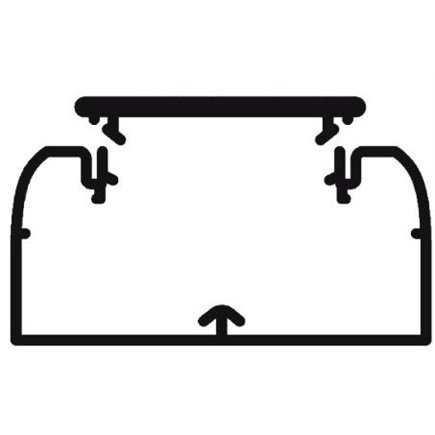

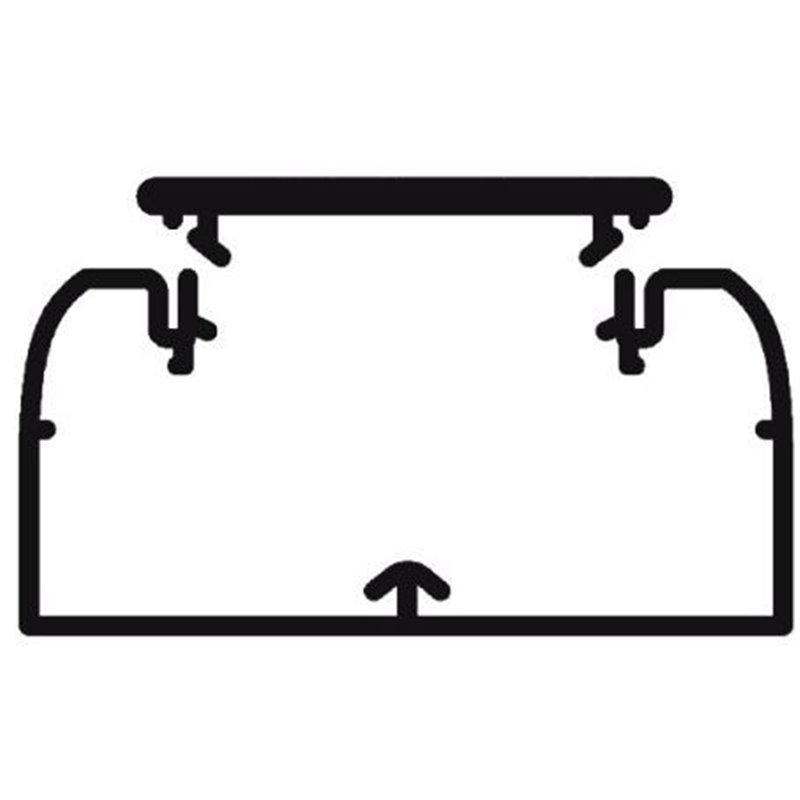

Cableaway's 50 x 105mm PVC Skirting Duct is a wall-mounted cable management trunking system for the containment, protection and reticulation of power, data and AV cabling. Manufactured to EN 50085-2-1 with an IP40 ingress rating and IK07 impact resistance, it's built from durable white PVC that won't corrode and carries no electrical continuity — a safe, non-metallic option for schools, healthcare and childcare facilities where a traditional metal skirting duct can't be used.
This is the duct BODY ONLY, supplied without a cover — 2m lengths. Pair with the 85mm PVC Skirting Duct Lid (sold separately) for a complete run, giving a full 4300mm² usable cross-section that comfortably fits Cat5e/Cat6/Cat6A data cabling alongside GPO power circuits. Add the Division Partition for a 2-compartment configuration that separates power and data.

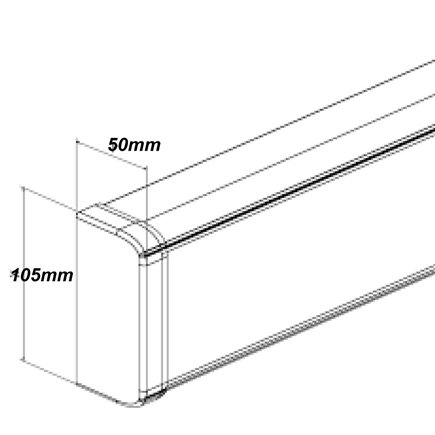

Technical Specifications:
- Width: 105mm
- Depth: 50mm
- Length: 2000mm (2m lengths)
- Material: PVC, white
- IP rating: IP40
- Impact rating: IK07
- Standard: EN 50085-2-1
- Operating temperature: -5°C to +60°C
- Compartments: 1 (single); expandable to 2 with the Division Partition
20-104-22
