50 X 105mm PVC SKIRTING DUCT (WHITE) UNIVERSAL SUPPORT FRAME 3-MODULE
$0.00
Tax included
Universal support frame, 3-module, for 85mm PVC Skirting Duct cover, white. Mounts standard 45x45mm switch/GPO mechanisms.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.

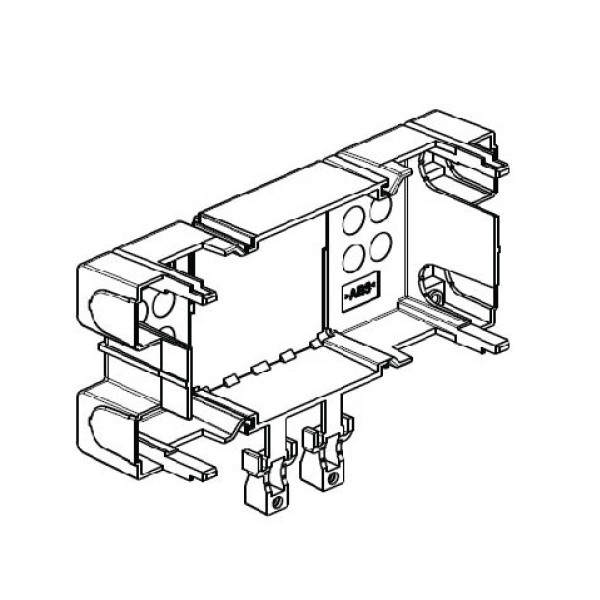

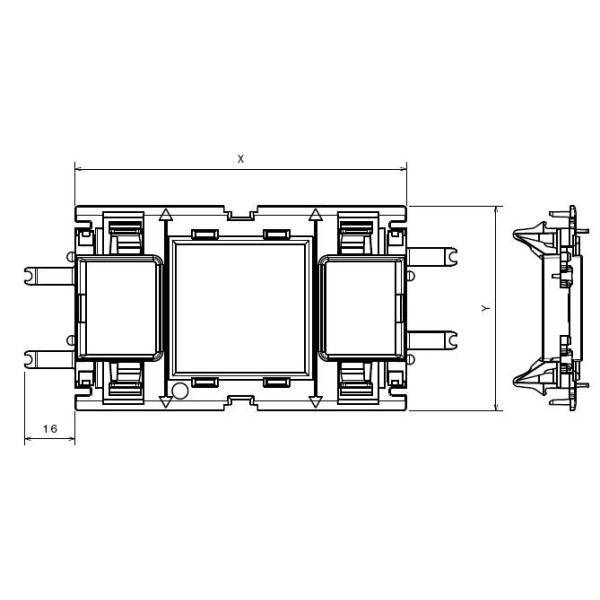

Cableaway's Universal Support Frame fits into the 85mm PVC Skirting Duct cover to mount standard 3-module switch or GPO mechanisms, giving a clean, flush power/data outlet within the duct run. Manufactured to EN 50085-2-1 with an IP40 ingress rating and IK07 impact resistance, it's built from durable white PVC that won't corrode and carries no electrical continuity.
Accepts 3 standard 45x45mm mechanisms and clips into a cut-out in the duct cover; use with the matching Switch Plate Back Box for full mounting depth.
Technical Specifications:
- Module capacity: 3 x standard 45x45mm mechanisms
- Compatible cover: 85mm PVC Skirting Duct cover
- Material: PVC, white
- Fitting: Clip-in mounting frame
- IP rating: IP40
- Impact rating: IK07
- Standard: EN 50085-2-1
- Operating temperature: -5°C to +60°C
