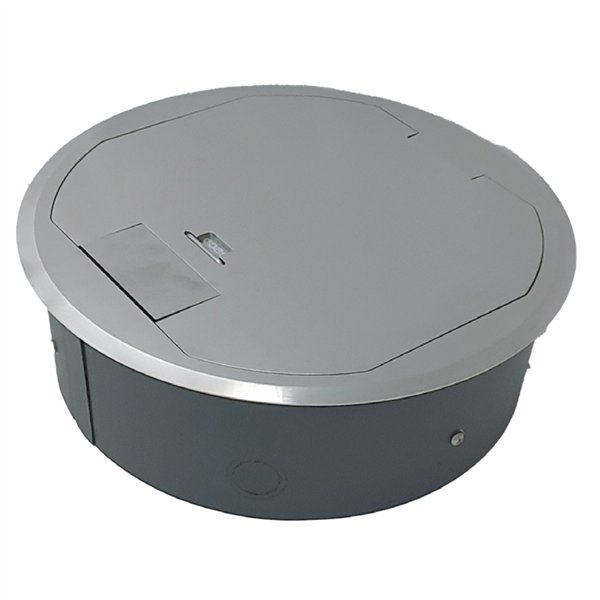

Floor Box 4 x Standard Outlet Provisions Round Stainless Steel Flush Lid (Soft Close)

EBRDSFB - Floor Box 4 x Standard Outlet Provisions Round Stainless Steel Flush Lid (Soft Close)

$0.00
Tax included

EnduraBox Round floor box with a stainless steel flush, soft-close lid and bevel surround. 4 x provision to mount a standard power/data plate. Available from Cableaway.

EBRDSFB
Quantity



Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

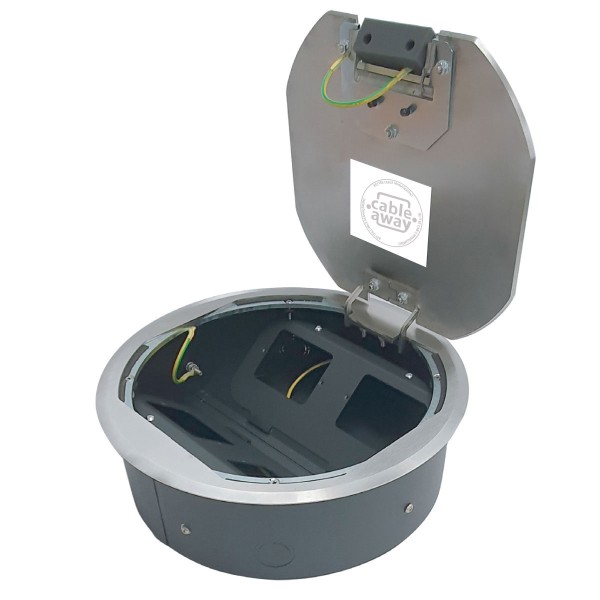

The EBRDSFB EnduraBox Round floor box is a reliable in-floor solution featuring a stainless steel flush lid with soft-close functionality and a bevel surround, fitted with 4 x provision to mount a standard plate for flexible power and data configurations.

TECHNICAL SPECIFICATIONS

Part Number EBRDSFB
Lid Type Flush, Soft Close, Bevel Surround
Lid Finish Stainless Steel
Carcass Type EnduraBox Round
Outlet Configuration 4 x Provision to Mount Standard Plate
Body Material Steel
Frame & Lid Material Stainless Steel
Shape Round

DIMENSIONS

BOX DIAMETER
307 mm
BOX DEPTH
97 mm

KEY FEATURES

  • ● Stainless steel flush lid with soft-close functionality
  • ● Bevel surround lid design for a seamless finish
  • ● Round EnduraBox steel carcass for commercial-grade durability
  • ● Multiple conduit entry points for efficient cable routing
  • ● 4 x provision to mount a standard plate for flexible power and data configurations
  • ● Suitable for both new installations and retrofit applications
  • ● Clean, low-profile finish for flexible workspace layouts

TYPICAL APPLICATIONS

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

ORDERING INFORMATION

Part Number EBRDSFB
Series EnduraBox Round Floor Box Series (EBRD, Soft Close Lid)
Warranty Manufacturer's warranty

COMPLIANCE & CERTIFICATION

Standards AS/NZS 3100, AS/NZS 3112, AS/NZS 3133, IEC 60670.23
Certification RCM & SAA Approved
Installation Must be installed by a licensed electrician in accordance with AS/NZS 3000 (Wiring Rules)

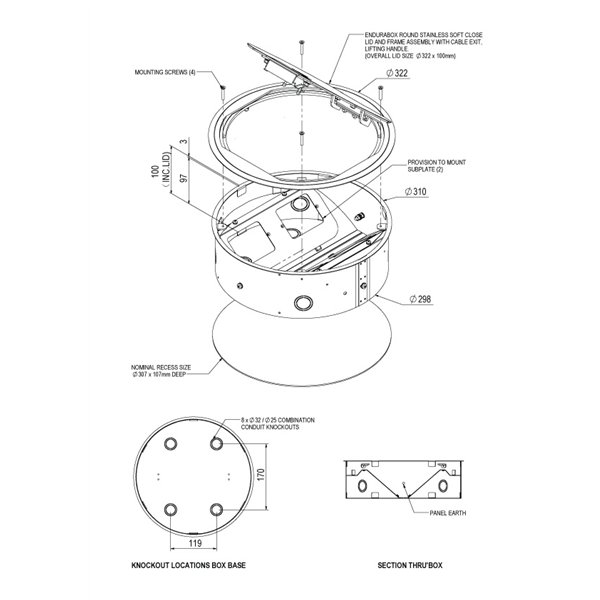

ASSEMBLY DIAGRAM

EBRDSFB

Data sheet

FLOOR BOX LID FINISH TYPE
SOFT CLOSE LID SECTION STAINLESS STEEL
FLOOR BOX CARCASS TYPE
STANDARD DEPTH CARCASS BOX
POWER OUTLET CAPACITY
4 - STANDARD POWER / DATA OUTLET PROVISION
