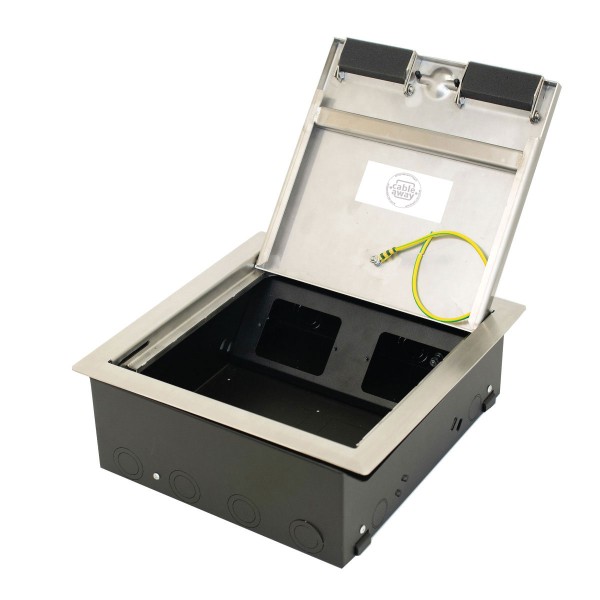

Floor Box 4 x Standard Outlet Provisions Round Stainless Steel Flush Lid (Soft Close)

EB9SFB - Floor Box 4 x Standard Outlet Provisions Stainless Steel Flush Lid (Soft Close)

$0.00
Tax included

304 grade stainless steel flush, soft-close lid with bevel surround. EnduraBox 98 Series, 98mm depth, provision to mount a standard power/data/AV plate. Available from Cableaway.

EB9SFB
Quantity



Secure Payments are easier than ever! Stripe's payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

The EB9SFB EnduraBox 98 Series floor box is a reliable and versatile in-floor solution featuring a 304 grade stainless steel flush lid with soft-close functionality and a bevel surround, fitted with 4 x provision to mount a standard plate for flexible power, data and AV configurations.

TECHNICAL SPECIFICATIONS

Part Number EB9SFB
Lid Type Flush, Soft Close, Bevel Surround
Lid Finish Stainless Steel (304 Grade)
Carcass Type EnduraBox 98 Series
Outlet Configuration 4 x Provision to Mount Standard Plate
Body Material Steel
Frame & Lid Material Stainless Steel
Box Depth 98mm

DIMENSIONS

BOX LENGTH
257 mm
BOX WIDTH
251 mm
BOX DEPTH
98 mm
LID PROFILE
Flush

KEY FEATURES

  • ● Stainless steel flush lid with soft-close functionality
  • ● Bevel surround lid design for a seamless finish
  • ● 304 grade stainless steel lid construction
  • ● Durable EnduraBox steel carcass for commercial-grade performance
  • ● Multiple conduit entry points for efficient cable routing
  • ● 4 x provision to mount a standard plate for flexible power, data and AV configurations
  • ● Clean, low-profile finish for high-traffic areas
  • ● Suitable for both new installations and retrofit projects

TYPICAL APPLICATIONS

Commercial offices & open plan workspaces
Conference rooms & boardrooms
Retail & showroom fit-outs
Hospitality & hotels
Educational facilities
Residential installations

ORDERING INFORMATION

Part Number EB9SFB
Series Endura 98 Series Floor Box (Flush, Soft Close Lid, 98mm Depth)
Warranty Manufacturer's warranty

COMPLIANCE & CERTIFICATION

Standards AS/NZS 3100, AS/NZS 3112, AS/NZS 3133, IEC 60670.23
Certification RCM & SAA Approved
Installation Must be installed by a licensed electrician in accordance with AS/NZS 3000 (Wiring Rules)

ASSEMBLY DIAGRAM

EB9SFB

Data sheet

FLOOR BOX LID FINISH TYPE
SOFT CLOSE LID SECTION STAINLESS STEEL
FLOOR BOX CARCASS TYPE
STANDARD DEPTH CARCASS BOX
POWER OUTLET CAPACITY
2 - STANDARD DGPO OUTLET
DATA OUTLET CAPACITY
7 - 12 DATA VIA STANDARD GRID PLATE
