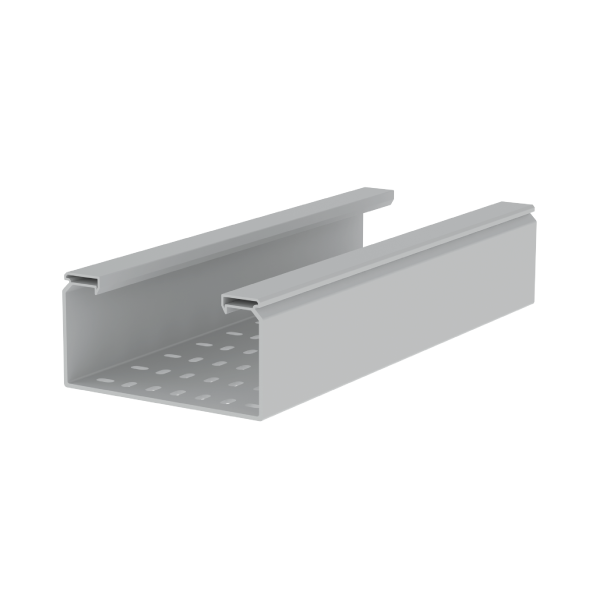

Unex Perforated Insulating Cable Tray 100x200 U23X Grey
$0.00
Tax included
Insulating perforated cable tray for support, protection and conduction of cables. 100mm x 200mm, U23X material, grey RAL 7035. Suitable for outdoors, corrosion resistant, assures electrical safety.
Secure Payments are easier than ever! Stripe's payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
The 66220 insulating perforated cable tray, 100x200mm, U23X material, grey RAL 7035, in 3m lengths. For support, protection and conduction of small and medium-calibre power and communication cables in outdoor or indoor installations, including humid, saline and chemical environments.
| Technical specifications | |
|---|---|
| Part Number | 66220 |
| Range | Cable Tray 66 |
| Type | Perforated |
| Material | U23X (PVC) |
| Colour | Grey RAL 7035 |
| Size (W x H) | 100 x 200mm |
| Length | 3m |
| Temperature Range | -20°C to +60°C |
| Fire Rating | Class M1, UL94 V0 |
Key features
- Insulating, electrically non-conductive – no earthing required
- Inherently resistant to humid and saline corrosion
- Good performance outdoors with UV exposure
- Non flame propagating, glow-wire tested to 960°C
- RoHS II compliant
- Taller 100mm sidewall for increased cable capacity versus the standard 60mm height range
| Ordering information | |
|---|---|
| Part Number | 66220 |
| Series | Unex Cable Tray 66 |
| Warranty | Manufacturer's warranty |
