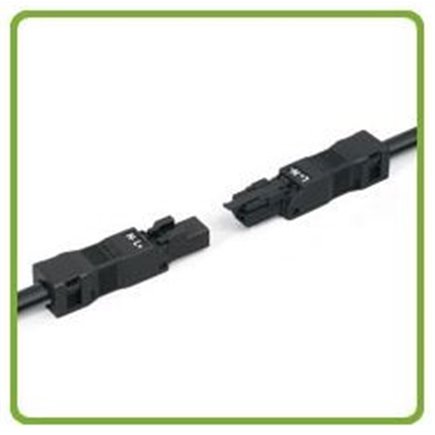

WINSTA® MINI - For use in conditions where space is limited.

The compact 2- and 3-pole MINI connector is suitable for the safe plug-in connection of sensors (switches, push buttons, window contacts, pressure switches, temperature sensors, ...), actuators (control valves, magnetic valves, servo motors, blinds/sun protection, etc.), control signal, lighting fixtures of protection class II, low-voltage lights, etc., in building installation.

Product profile WINSTA® MINI
•Compact plugs and sockets for self-assembly.
•Snap-in device connector.
•Pre-assembled connecting cables.
•h-distribution connectors (Input: plug Output: socket-socket), the multiplication of potentials.
•Maintenance-free components
•Number of poles: 2 and 3 poles
•Wire range: 0.35 mm2 to 1.5 mm2
•Rated voltage: 250 V/4 kV/3
•Rated current: 16A
•Different coding options
•Connection technology: CAGE CLAMP® S connection for all types of conductors. Additional advantage: solid wires and fine-stranded wires with ferrules can be simply pushed in.

Preparation

1. Sheath removal length = 33 mm
2. Stripping length = 9 mm

Conductor connection with CAGE CLAMP S

Preparation

1. Sheath removal length = 33 mm
2. Stripping length = 9 mm

Conductor connection with CAGE CLAMP S

Latch wired plug-in connector onto the base of the strain relief housing.

Manually press on the strain relief clip.

Push down strain relief clip with a screwdriver (blade width 2.5mm) alternately on both sides.

Latching the top of the strain relief housing.

Locking catch assembly

Locking catches are factory-mounted for all products to be mounted fixedly (snap-in versions, distributors), in order to assure a locking with the plugs / sockets to be plugged. An additional locking catch is only required for a "floating connection" (socket/plug).

Marking

The printed marking of the plug connector is easily seen through the opening in the strain relief housing.
