UNEX
Unex is a Specialist in the innovation and manufacturer of insulating solutions.
Since 1964 Unex has constantly strived to deliver the highest quality thermal plastic management systems. Our research and development team continues to develop products and materials to suit the changing needs of the industry.
Unex's thermal insulating solution can be used indoors and outdoors and conform to some of the world's strictest standards. In addition, we formulate our own raw materials using recycled products in many items in the range.
Benefits of Unex Products
• Load Capacity
• Resistance to Corrosion
• Exposure to UV
• Resistance to extreme temperatures
• Non-Combustible (Fire)
• Safety and ease of use
• Reliability
• ROHS compliant
• Recyclable
Unex, Delivering safe and effective thermal plastic solutions. For pricing and availability, call or email the team @
sales@cableaway.com.au PH: 1300 883 452.
Subcategories
-
UNEX Trunking
-
UNEX Floor Box 52
-

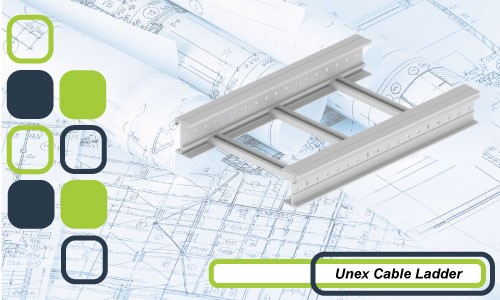

Unex PVC Cable Ladder 67
-
Unex Service Post 50
-

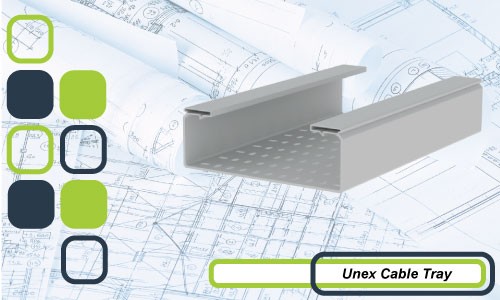

Unex PVC Cable Tray 66
-
Unex Service Pole 50
-
Unex Furniture Supply 51
-
Unex Furniture Supply 51
-
Unex Skirting Board Duct 80
-
Unex Connection & Branch Boxes 40
-

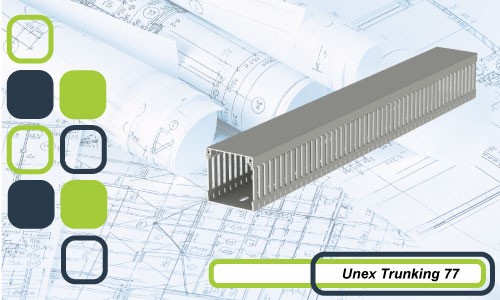

Slotted Trunking 77
-

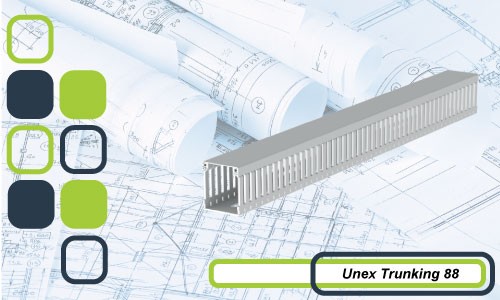

Slotted Trunking 88
-
Unex Fixing and Cable ID'S
-
NEW Unex C-shape cover for HVAC 35x35 in U23X
For fixing and connecting pipes in split type air conditioning systems. To...
View ProductFor fixing and connecting pipes in split type air conditioning systems. To be used with the Pipe clamp 31130-04. Rectilinear design that integrates with the construction elements, giving the system a nice finishing. Paintable. Film protected. Suitable for outdoor use. Its rigidity ensures good anchoring to the base and prevents deformations. length: 2m -
Unex 6 mm trunking plug in U63X
To fix trunkings and modular boxes in indoor installations. Easy to mount...
View ProductTo fix trunkings and modular boxes in indoor installations. Easy to mount and remove. Applicable to the most usual kinds of wall. Drill bit Ø6mm. Colour: Black. Insulating material, halogen free. Electrical safety: The installation is protected against electrical contacts. No need for special tools: Drill bit Ø4mm. Allows corrections: Removable from any kind of wall.
-
Unex skirting board duct 16x100 in U23X
For distribution of power and data services and mounting of outlets...
View ProductFor distribution of power and data services and mounting of outlets through skirting boards in housing and buildings. Allows you to lay out all services in housing and public buildings by taking the place of a conventional skirting board. Compact and plain trunking, with adjusted sizes, to perfectly merge into the surroundings. Aluminium colour. Safety: electrical (insulating material, IP4X); mechanical (protection against impacts IK07); and in front of fire (glow-wire test at 960 Deg C; non-flame propagator). Easy mounting. Accessible installations, surface mounting. Simplified execution: it doesn't involve additional constructive elements. Complete versatility to change or expand services without refurbishment. Smoothed design: integration in the environment. Moderate depth: Furniture can be moved against the wall. Can be painted. Protective film. Free choice and composition of the most common switches and sockets, which are mounted outside the duct by means of matching adapters.
-
Unex connection and branch box 110x45 in U24X
To cover and protect cables. Grey. Insulating material. Easy mounting:No need...
View ProductTo cover and protect cables. Grey. Insulating material. Easy mounting:No need to cut the main mini trunking. The internal piece keeps the circuits separated. The external piece hides the cut marks of both trunking and cover. Protection against mechanical damage IK07. -
Unex adapter for 2 outlets Mosaic type, cover 65mm, aluminium colour, in U24X
To mount Mosaic switches and socket outlets (4 modules 22,5x45). Aluminium...
View ProductTo mount Mosaic switches and socket outlets (4 modules 22,5x45). Aluminium colour. Insulating material. Easy mounting. Protection against mechanical damage IK08. -
Unex slotted trunking 18x20 in U23X
For cable conduction in electrical and communications cabinets, with...
View ProductFor cable conduction in electrical and communications cabinets, with possibility of suspended sets. Higher safety for the installation assured by the trunking's robustness. Insulating material. Length: 2m. Grey. Fire safety: Glow-wire test at 960 Deg C; non-flame propagator. Easy mounting and maintenance. The cover is easy to mount and remove, providing a very safe fixing. Cost reduction and safe use:Without cutting tips or edges. Flexible, resistant and rounded prongs, avoiding damage to cables and personal injury. Slots until 6mm2 for cable derivation. -
Unex adapter for 2 outlets Mosaic type, cover 65mm, aluminium colour, in U24X
To mount Mosaic switches and socket outlets (4 modules 22,5x45). Aluminium...
View ProductTo mount Mosaic switches and socket outlets (4 modules 22,5x45). Aluminium colour. Insulating material. Easy mounting. Protection against mechanical damage IK08. -
Unex floor box in U24X
For distribution of access points in open-plan rooms. Minimum height to...
View ProductFor distribution of access points in open-plan rooms. Minimum height to mount the Floor box: 40mm. Clean and safe system:Insulated Floor box, no need for earthing. Watertight connections. Outlets are insulated, separated and kept apart from the floor. Possible supply from Trunkings 73 sizes 30x60, 40x60, 40x90 and from tube up to 40mm diameter. Versatile configuration of workstations with possibility to combine with Service post 50 or Furniture supply 51. Easy mounting:160mm high box. Can be easily cut at the required height. Can be mounted inside or over concrete structures with any kind of finishing: ceramics, tiles, marble, wood, carpet, etc. Protective lid to assure perfect conditions at the end of construction. Divider for circuit separation. -
Unex slotted trunking 33x30 in U23X
For cable conduction in electrical and communications cabinets, with...
View ProductFor cable conduction in electrical and communications cabinets, with possibility of suspended sets. Higher safety for the installation assured by the trunking's robustness. Insulating material. Length: 2m. Grey. Fire safety: Glow-wire test at 960 Deg C; non-flame propagator. Easy mounting and maintenance. The cover is easy to mount and remove, providing a very safe fixing. Cost reduction and safe use:Without cutting tips or edges. Flexible, resistant and rounded prongs, avoiding damage to cables and personal injury. Slots until 6mm2 for cable derivation. -
Unex divider for trunking 60mm in U23X
To separate circuits. Length: 3m. Insulating material. Removable, with...
View ProductTo separate circuits. Length: 3m. Insulating material. Removable, with frontal mounting and solid fixing to the base. Protection against mechanical damage IK08. -
Unex adapter for 1 modular outlet Mosaic type, cover 80mm, white, in U24X
To mount Mosaic switches and socket outlets (2 modules 22,5x45). White....
View ProductTo mount Mosaic switches and socket outlets (2 modules 22,5x45). White. Insulating material. Easy mounting. Protection against mechanical damage IK08. -
Unex cable tie for outdoor use 2,5x101 in U61X
For tying of cables and conduits in indoor and outdoor installations. High...
View ProductFor tying of cables and conduits in indoor and outdoor installations. High tensile strength. Service temperature: +105 Deg C to -40 Deg C. Maximum utilization diameter: 22mm. Minimum utilization diameter: 1,6mm. Load resistance acc. /IEC 62275: 8,16 kg. Designation acc. /MS 3366: MS 3367-4. Own design and manufacture. Own raw material: U61X. Insulating, halogen free material. UL aproval both for raw material and finished product. Easy mounting and smooth fastening. Insulating locking mechanism: highly resistant, assures easy fixing and tightening of the cable tie. Inside teeth to protect the cable's jacket. Maximum reliability and durability. It is recommended to keep the bag closed until use. Colour: black.
