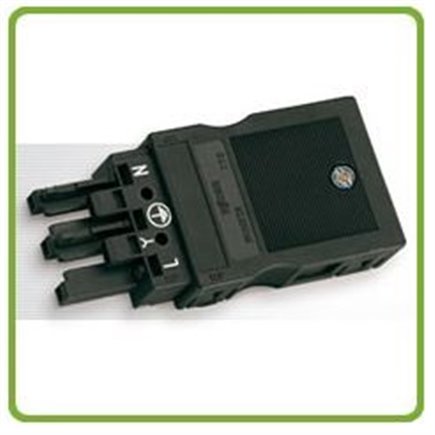

Winsta Midi Softwire System

0 Review(s)
Winsta Midi
  • Secure Payments are easier than ever! Eway’s payment solutions Secure Payments are easier than ever! Eway’s payment solutions
  • Delivery Option’s, you choose from our list of delivery partners Delivery Option’s, you choose from our list of delivery partners
  • Manufactures warranty on all Cableaway sold products. Manufactures warranty on all Cableaway sold products.

Winsta Midi



The range of connectors with the largest variety of components (plugs/sockets, snap-in connectors, distribution connectors, cable assemblies, etc.), codings and colors for standard installation applications. Up to 4 mm2, 250/400 V and 25A. All other product ranges complete the WINSTA® MIDI series.Plug and play solutions are becoming increasingly important for professional electrical installations, as installation time is often reduced to an absolute minimum. Making a decision for a new building usually requires much time spent in cumbersome planning and approval procedures. All trades must be perfectly harmonized and planned so as not to jeopardize the scheduled completion of the project. For example, when 700 lights need to be installed in an airport, deadlines are so tight that there is frequently not enough time to connect each light in a conventional hard wired way. What is required here is a quick and reliable plug and play solution.



WINSTA® MIDI meets these requirements. Using a wide range of products, each light can be pre-wired with a connector before reaching the site, allowing an equally loaded network of lights to be installed using cable assemblies and distribution connectors. Every application is made pluggable, quick and reliable using (tried and) tested electrical equipment.



Product profile WINSTA® MIDI
•Insulated plugs and sockets for self-assembly.
•Snap-in device connector
•Pre-assembled connecting cables.
•Wide range of distribution connectors available (h-distribution connectors; T-distribution connectors; distribution boxes for single-pole switch, two-way or series circuits; three-phase to single-phase distribution connectors; distribution connectors with phase selection, pre-wired distribution boxes, etc.)
•Maintenance-free components
•Number of poles: 3, 4, 5 and 6 poles
•Wire range: 0.5 mm2 to 4 mm2
•Rated voltage: 250/400 V/4 kV/3
•Rated current: 25A
•Degree of protection: IP 20
•Large number of color and coding options
•Connection technology: CAGE CLAMP® S technology for all types of wires for push-in connection of stripped solid wires and ferruled stranded wires.



WINSTA® MIDI Series 770 handling

Preparation



Winsta Midi



We recommend to pull the pre-latched strain relief housing over the conductor prior to conductor connection. However, the strain relief can be mounted at a later time as well.



Winsta Midi



1. Strip length, outer insulation = 55 mm
2. Strip length = 9 mm
3. PE conductor protruding = 7 mm



Conductor connection with CAGE CLAMP® S





Winsta Midi



Open terminal point with screwdriver (blade width 2.5mm) and insert stripped conductor to stop.



Winsta Midi



Push solid stripped conductor to stop.



Winsta Midi



Manipulate clamp spring with screwdriver (blade width 2.5) for connection of solid conductors and insert the stripped conductor to stop.



Winsta Midi



For the removal of the conductor, manipulate clamp spring with screwdriver (blade width2.5mm) and pull off the conductor.

Strain relief mounting



Winsta Midi



Latch the strain relief housing on the plug/socket. Note "TOP".



Winsta Midi



For operation, latch together strain relief housings.



Variable coding



Winsta Midi



Simply break off or cut coding pin at the socket.



Winsta Midi



Insert coding pin into plug with the break-off point in front, until it latches.



Marking



Winsta Midi



Marking the strain relief housing with the WSB quick marking system.

Winsta Midi
