Winsta RD

Winsta RD

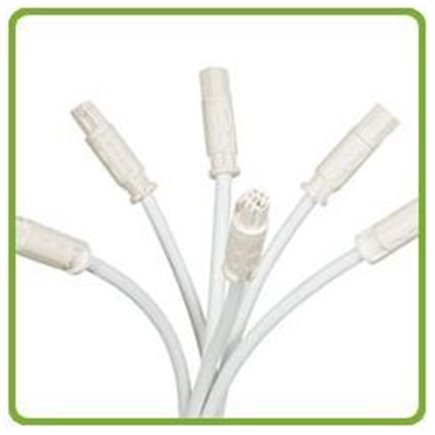

New products with round design have been added to the range of WINSTA connectors. With an external diameter of only 17.5mm, the WINSTA® RD fits - as a compact 3- and 4-pole round connector system - in lighting and wiring conduits, etc., and opens up additional application areas.

Winsta RD
Sorry, This item is out of stock.


Secure Payments are easier than ever! Eway’s payment solutions



Delivery Option’s, you choose from our list of delivery partners



Manufactures warranty on all Cableaway sold products.

Cableaway WINSTA RD - For round conduits and ducts



Winsta RD





New products with round design have been added to the range of WINSTA connectors. With an external diameter of only 17.5mm, the WINSTA® RD fits - as a compact 3- and 4-pole round connector system - in lighting and wiring conduits, etc., and opens up additional application areas.

Product profile
•Supplied only as pre-assembled cables
•Connecting cables with socket - plug available in different lengths
•Connecting cables with plug or socket and free end
•Colors: black and white
•Number of poles: 3 and 4 poles
•Wire range: 1.5 mm2/2.5 mm2
•Rated voltage: 250 V/4 kV/3
•Rated current: max. 20A



Cable assemblies, 3 poles



•Connecting cables, socket - plug
•Wire sizes 3 x 1.5 mm² and 3 x 2.5mm²
•Different cable lengths, PVC and halogen-free
•Series 774

Connecting cable - free end
•3-pole
•Connecting cables, plug or socket - free end
•Wire sizes 3 x 1.5 mm² and 3 x 2.5mm²
•Different cable lengths, PVC and halogen-free
•Series 774



Cable assemblies, 4 poles




•Connecting cables, socket - plug
•Wire sizes 4 x 1.5 mm²
•Different cable lengths, PVC and halogen-free
•Series 774

Connecting cable - free end
•4 poles
•Connecting cables, plug or socket - free end
•Wire sizes 4 x 1.5 mm²
•Different cable lengths, PVC and halogen-free
•Series 774








Winsta RD
