Gnome Series Stainless Steel Floor Outlets

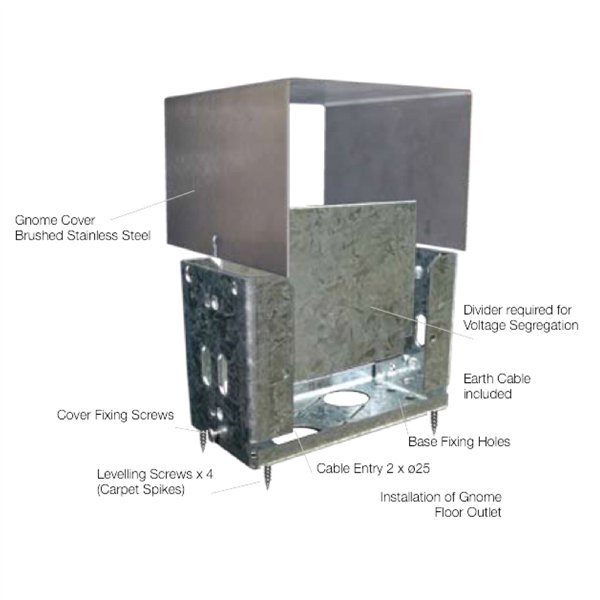

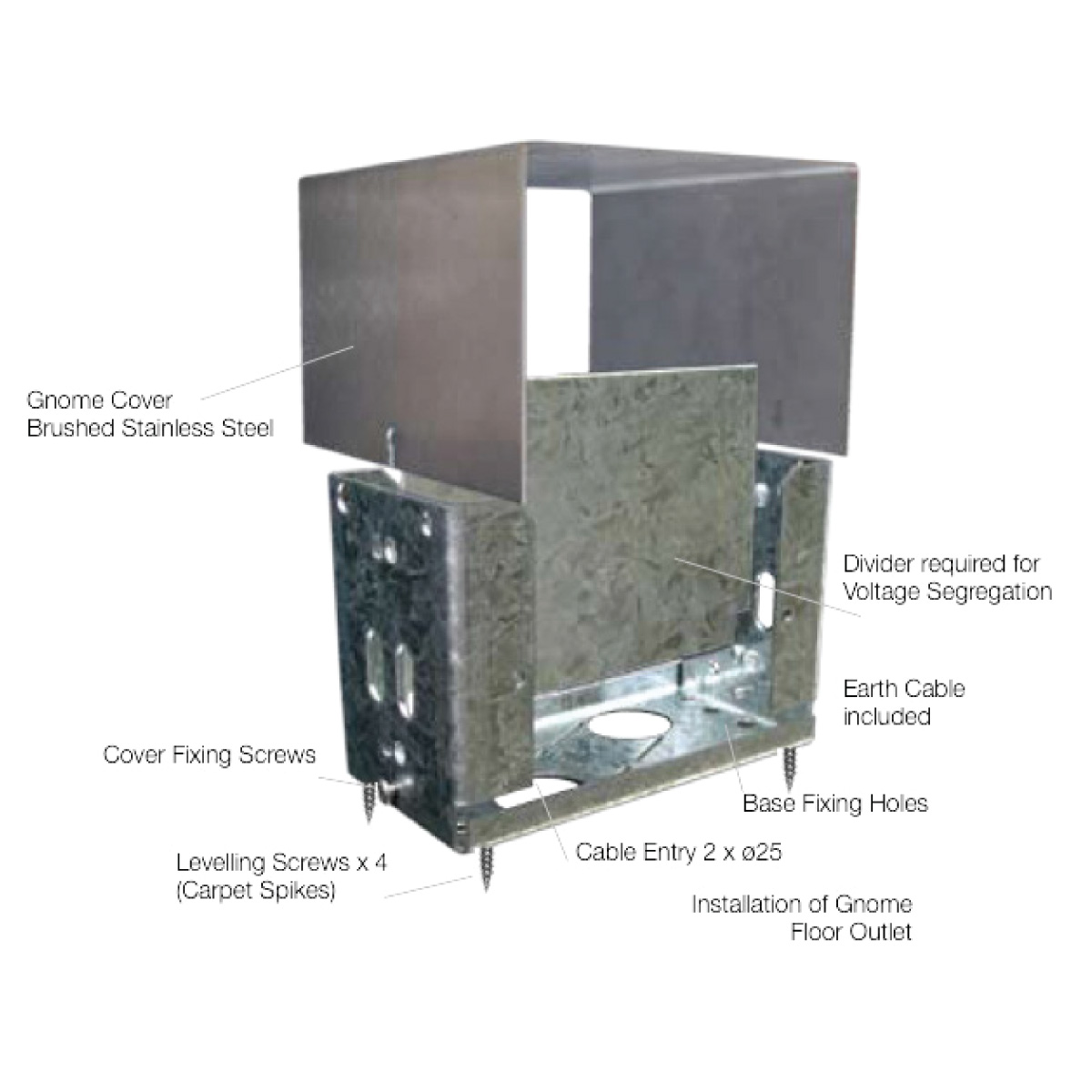

Formerly part of the Esco product range, Super Gnome is a stainless steel, flush-mounted floor outlet and service box designed for commercial applications, hospitals, and healthcare environments. Gnome series and are designed for easy access to power and data in floor or riser installations.
Secure Payments are easier than ever! Eway’s payment solutions
Delivery Option’s, you choose from our list of delivery partners
Manufactures warranty on all Cableaway sold products.
GNOME SERIES STAINLESS STEEL OUTLET
Unloaded
| PART NUMBER | DESCRIPTION | FINISH | DIMENSION |
| E3G1 | SINGLE GNOME FLOOR OUTLET (UNLOADED) | STAINLESS STEEL | 121mm W x 95mm D x 81mm H |
| E3G1-BL | SINGLE GNOME FLOOR OUTLET (UNLOADED) | POWDER COATED - MATT BLACK - 19319 | 121mm W x 95mm D x 81mm H |
| E3G1-WS | SINGLE GNOME FLOOR OUTLET (UNLOADED) | POWDER COATED - WHITE SATIN - 1139S | 121mm W x 95mm D x 81mm H |
Loaded 1 x Double GPO
| PART NUMBER | DESCRIPTION (SINGLE OUTLET) | FINISH | DIMENSION |

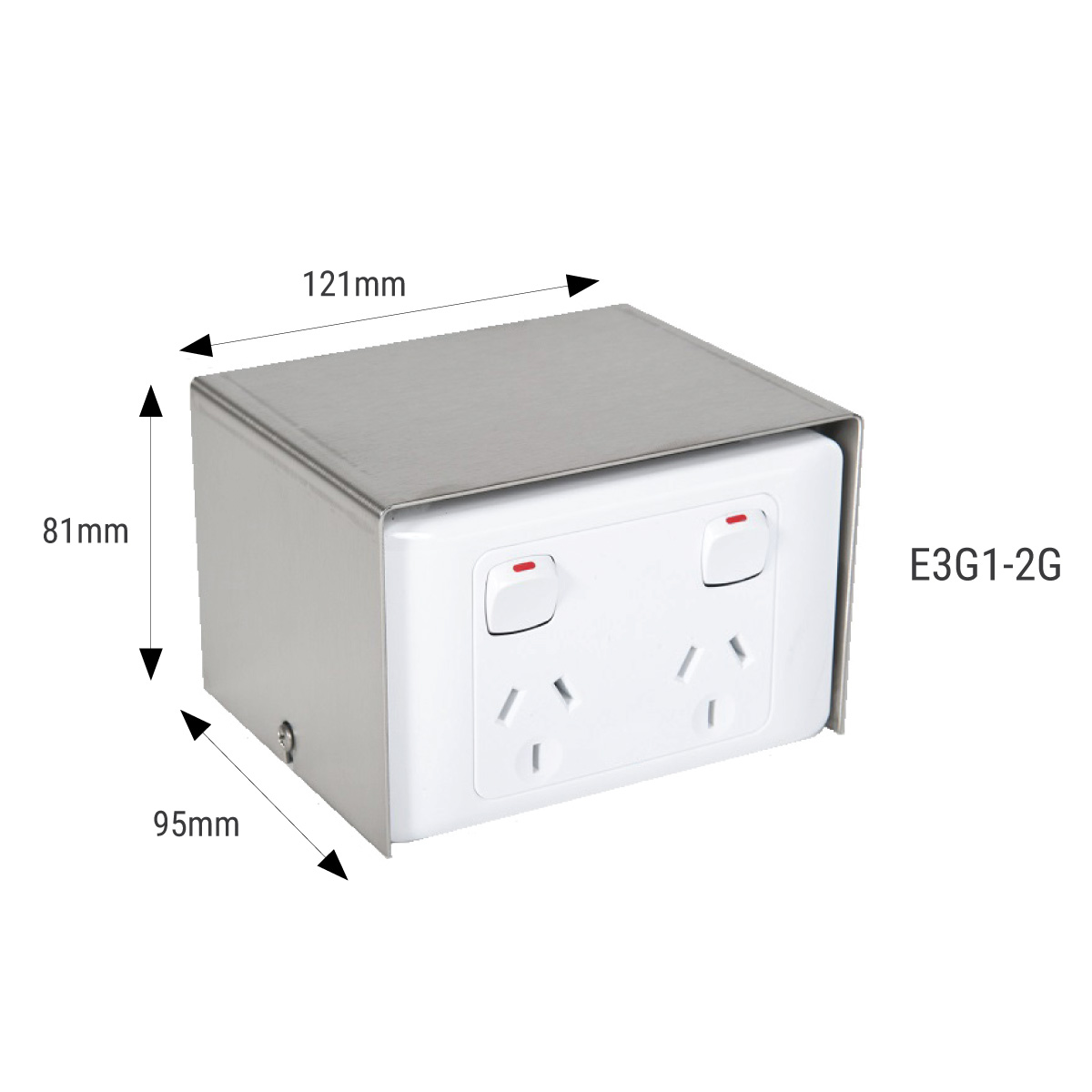

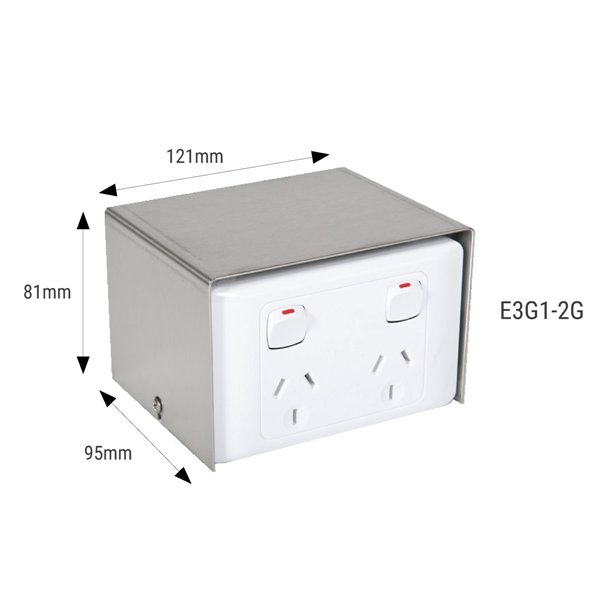

| E3G1-2G | 1 x Double GPO 10A White | STAINLESS STEEL | 121mm W x 95mm D x 81mm H |
| E3G1-2G-BL | 1 x Double GPO 10A White | POWDER COATED - MATT BLACK - 19319 | 121mm W x 95mm D x 81mm H |
| E3G1-2G-WS | 1 x Double GPO 10A White | POWDER COATED - WHITE SATIN - 1139S | 121mm W x 95mm D x 81mm H |
Loaded 1 x GPO 2 x Data Provisions
| PART NUMBER | DESCRIPTION (SINGLE OUTLET) | FINISH | DIMENSION |

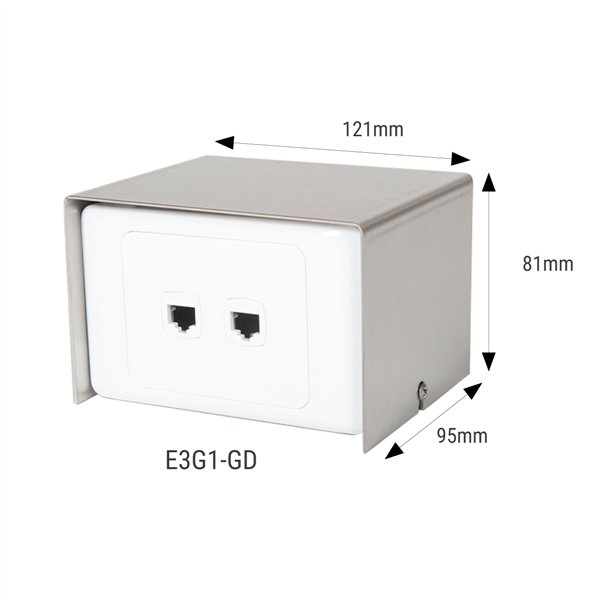

| E3G1-GD | 1 x Double GPO 10A + 1 x 2 Gang Data Plate | STAINLESS STEEL | 121mm W x 95mm D x 81mm H |
| E3G1-GD-BL | 1 x Double GPO 10A + 1 x 2 Gang Data Plate | POWDER COATED - MATT BLACK - 19319 | 121mm W x 95mm D x 81mm H |
| E2G1-GD-WS | 1 x Double GPO 10A + 1 x 2 Gang Data Plate | POWDER COATED - WHITE SATIN - 1139S | 121mm W x 95mm D x 81mm H |
Single Gnome Riser Kit
| PART NUMBER | DESCRIPTION (SINGLE OUTLET) | FINISH | DIMENSION |
| E3G1-R | Single Gnome Riser Kit | Extended Cover - Stainless Steel (Matt White 2721139M) | 121mm W x 95mm D x 81mm H |
E3G1 - Series
Formerly part of the Esco product range, Super Gnome is a stainless steel, flush-mounted floor outlet and service box designed for commercial applications, hospitals, and healthcare environments. Gnome series and are designed for easy access to power and data in floor or riser installations.
