Keep your network gear secure and organised with Cableaway's fully welded swing frame wall cabinets. Designed for installers who value strength and simplicity, these cabinets come pre-assembled, making overall installation fast and efficient.

The robust welded steel frame supports standard 19" rack equipment in a single-section layout. A toughened, tempered glass front door provides clear visibility while protecting your equipment. The rear swing feature, along with removable side panels, makes cabling and maintenance quick and hassle-free.

Top and bottom cable entry points, along with an L-shaped mounting profile, enable faster installations. The swing frame design provides full rear access when needed. You can even fit a fan for extra airflow.

At a Glance

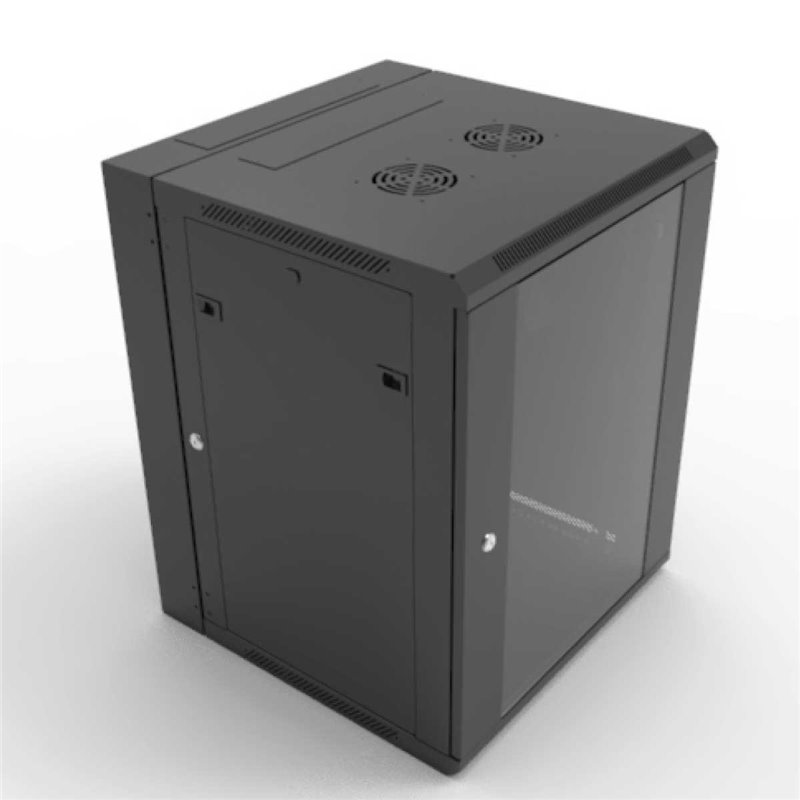

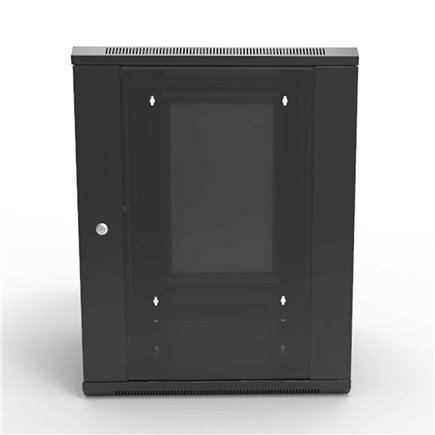

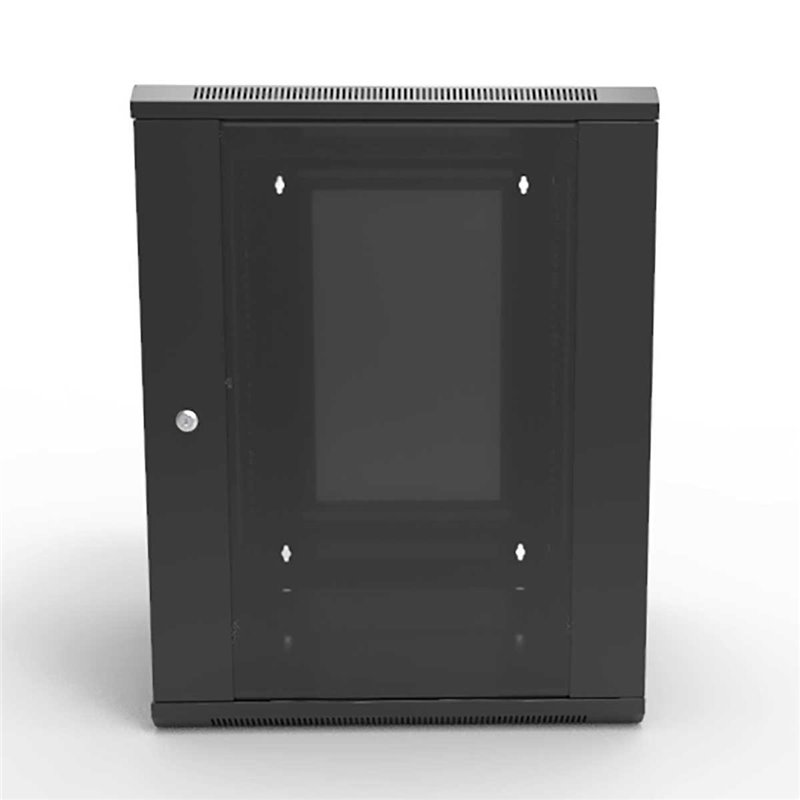

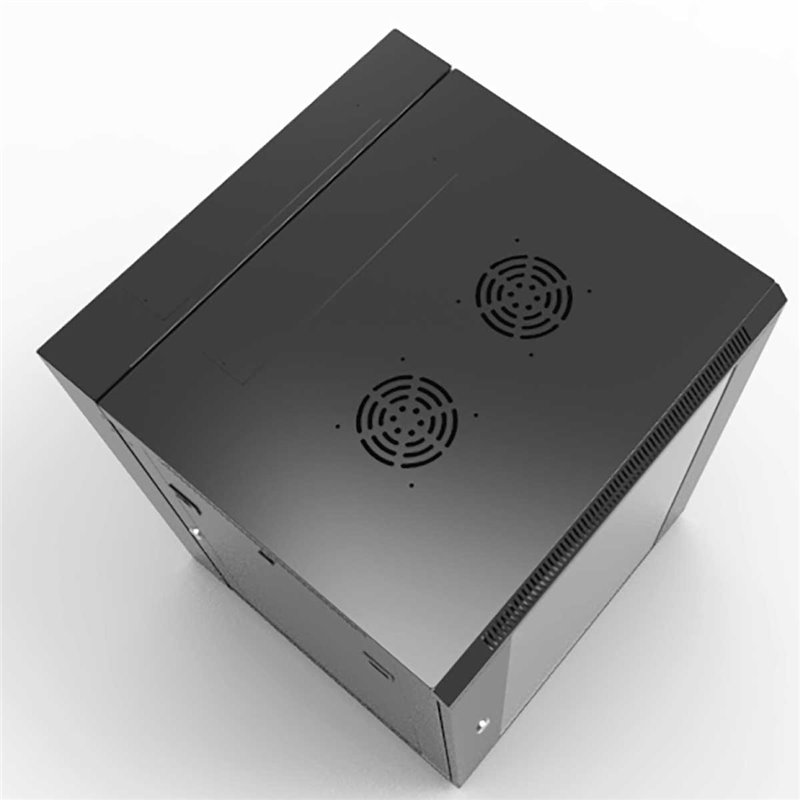

18RU Swing Frame Wall Mounted Data Cabinet — 600x550mm

• Size: 600mm (W) x 550mm (D)

• Fully welded frame

• Lockable tempered glass front door

• Swing frame design for rear access

• Standard 19” rack compatible

Key Features:

Fully welded, heavy-duty frame for maximum durability

Ready to install — no flat pack assembly required

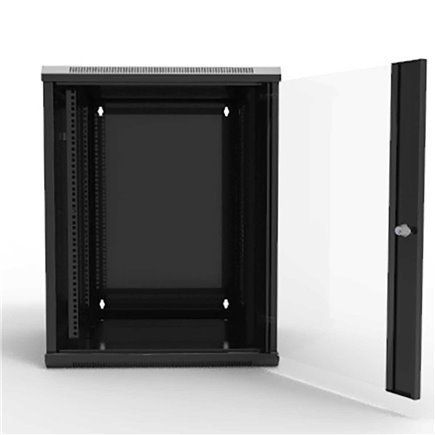

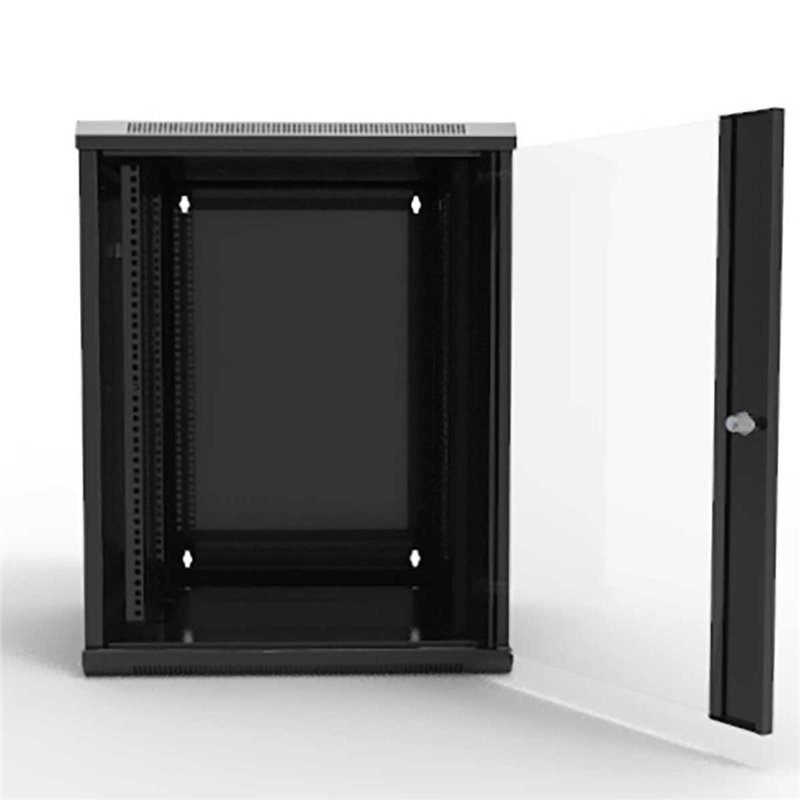

Tempered glass front door for security and easy monitoring

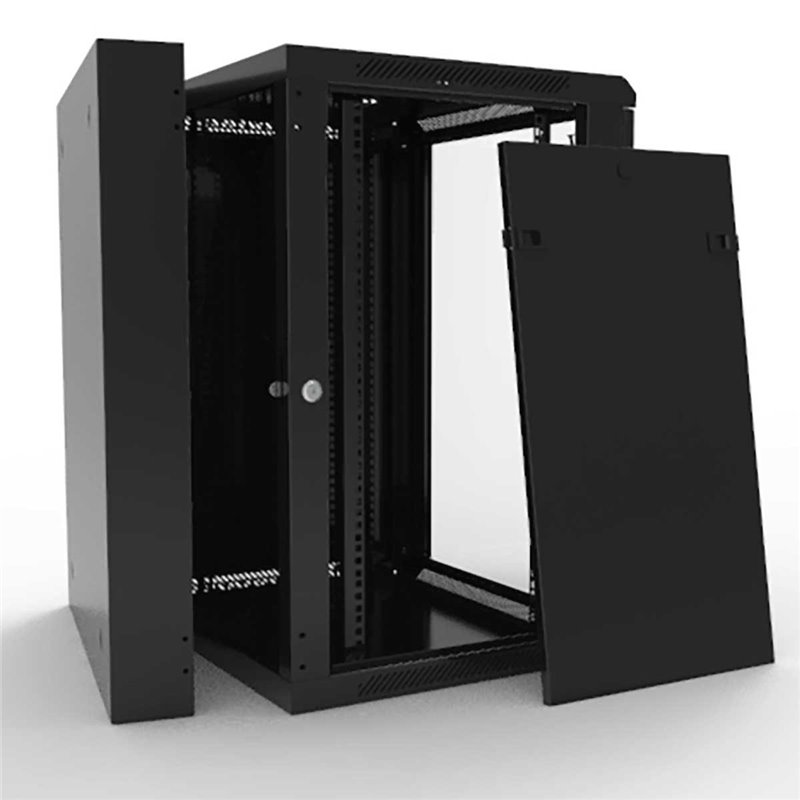

Removable side panels for flexible access

Top & bottom cable entry points

Compatible with all standard 19" rack equipment

Swing frame for easy rear access

Space for optional fan installation

What's Included:

1 x SRWD1865 Swing Frame Wall Cabinet (600mm x 550mm)

Wall mounting frame

Pre-assembled swing frame cabinet (897mm height)

Recommended Add-ons:

1. Fan Kit — keep your equipment cool
2. Additional shelves — optimise your rack space
3. Cable management accessories — tidy up every install

Things to Consider - Static Load Capacity for Your Data Cabinet

When selecting a data cabinet, it’s essential to know its static load capacity — this is the maximum weight the cabinet can safely support when installed and not in motion. The static load includes the total weight of all mounted equipment, cabling, and any accessories fitted inside the cabinet.

Unlike dynamic loads (which involve motion, vibrations, or impacts), static loads remain constant over time. This means your cabinet should always be installed in a fixed, stable position and loaded within its specified static weight limit to ensure safe, long-term use.

As a general rule, a cabinet’s dynamic load capacity is usually 3–5 times lower than its static load capacity. So, if you ever need to move a cabinet with equipment inside, be aware that the safe weight limit drops significantly to prevent damage or tipping (we suggest that a swing frame cabinet is considered a dynamic load).

Tip: For best practice, always check the product specifications and plan your installation so the total weight of your servers, switches, and accessories stays well within the stated static load capacity.

Why Choose Cableaway for Swing Frame Wall Cabinets?

Built Tough: All Cableaway swing frame wall cabinets are fully welded, not flat-packed or riveted — providing you with strong, secure housing for your valuable network equipment.

Easy Access: The swing frame design makes rear access simple, saving installers time on site and keeping cabling neat and easy to maintain.

Trusted Quality: Lockable tempered glass doors, removable panels, and smart cable entry points are standard, designed with the input of real electricians and IT installers.

Complete Solutions: One supplier for the cabinet, shelves, fan kits, lockouts and cable management — all perfectly matched to your cabinet.

Australian Stock & Support: Fast dispatch, reliable local supply, and knowledgeable technical help when you need it.

Professional Finish: A clean, tidy install your customers will appreciate — helping you deliver work you’re proud to stand behind.
